Shown below are results for the glue weight measurements
IService::UPLOADDB INFO Working on test code ASIC_GLUE_WEIGHT
GlueWeightSvc::uploadDB INFO Formatting database test for ASIC_GLUE_WEIGHT
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 1111 for component GPC2233_X_003_C_H6
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_003_C_H6/GlueWeightHybridASIC_PROD_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...

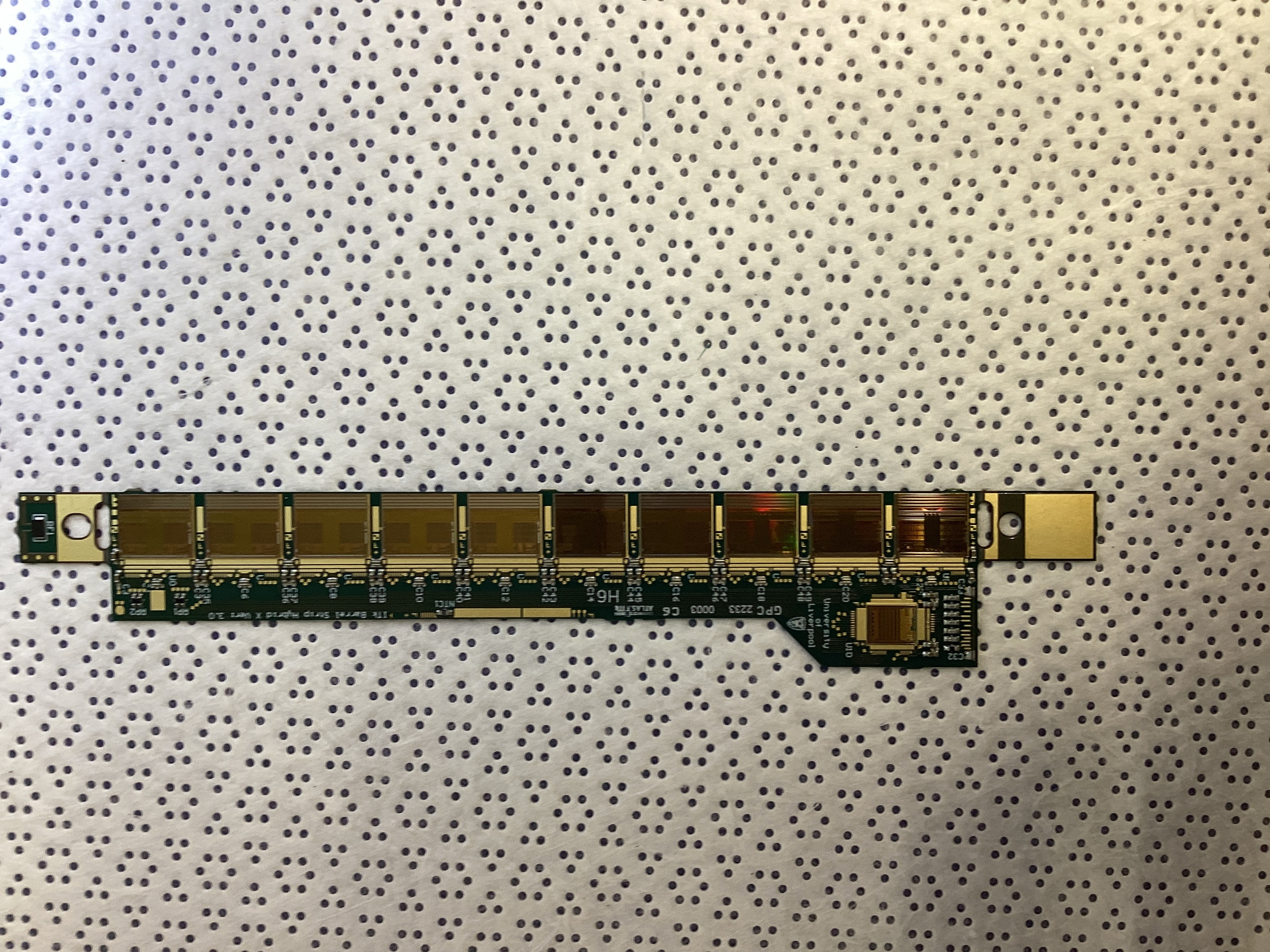

IService::install INFO Installed 20USBHX2001492_image.jpg...
IService::install INFO Installed DB_COMMENTS.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_GLUE_WEIGHT.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2233_X_003_C_H6.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//GlueWeightHybridASIC_PROD_v1//20USBHX2001493.config
IService::next INFO Scheduling Data_20USBHX2001493.json file to run...
IService::next INFO Writing results to /home/data/output//GlueWeightHybridASIC_PROD_v1//GPC2233_X_014_C_H0/1/
Metadata
Value
Component type
Operator
KA AND
Date
2023-07-24T22:54:46.693+00:00
Program
ASIC X
Field
Weight/Volume
Assummed density of glue
1.077
Total volume of ASIC glue [uL]
41.511
Volume per glue dot [nL]
798.298
Weight of glue under ASICs [mg]
44.700
Weights of bare hybrid [g]
2.361
Weights of stuffed hybrid [g]
2.405
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeHybridThickness INFO Total stack up 840.572000, chip thickness 300.000000 and glue 116.575000, giving hybrid 423.997000 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 834.944867, chip thickness 300.000000 and glue 118.251028, giving hybrid 416.693839 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 831.921895, chip thickness 300.000000 and glue 116.345917, giving hybrid 415.575978 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 826.325352, chip thickness 300.000000 and glue 111.681194, giving hybrid 414.644157 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 823.193017, chip thickness 300.000000 and glue 112.679083, giving hybrid 410.513933 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 820.211184, chip thickness 300.000000 and glue 111.593778, giving hybrid 408.617407 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 823.446989, chip thickness 300.000000 and glue 114.406361, giving hybrid 409.040628 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 821.055855, chip thickness 300.000000 and glue 116.177000, giving hybrid 404.878855 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 827.892645, chip thickness 300.000000 and glue 114.094861, giving hybrid 413.797784 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 828.665570, chip thickness 300.000000 and glue 116.980125, giving hybrid 411.685445 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 833.622250, chip thickness 300.000000 and glue 113.517750, giving hybrid 420.104500 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_003_C_H6/1//Data__GPC2233_X_003_C_H6.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_003_C_H6/1//Results__GPC2233_X_003_C_H6.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_003_C_H6/1//Data__GPC2233_X_003_C_H6.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_003_C_H6/1//Results__GPC2233_X_003_C_H6.txt
IService::log INFO Logging status 1111 for component GPC2233_X_003_C_H6
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_003_C_H6/MetrologyHybrid_PROD_X_v0-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed Summary.pdf...
IService::install INFO Installed TotalStackUp.pdf...
IService::install INFO Installed HybridThickness.pdf...
IService::install INFO Installed Positions.pdf...
IService::install INFO Installed Tilt.pdf...
IService::install INFO Installed Data__GPC2233_X_003_C_H6.txt...
IService::install INFO Installed Results__GPC2233_X_003_C_H6.txt...
IService::install INFO Installed Results.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO Installed GPC2233_X_003_C_H6.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//MetrologyHybrid_PROD_X_v0//GPC2233_X_025_B_H6.config
IService::next INFO Scheduling GPC2233-X-03C-H6-GPC2233-X-25B-H6-5-3-2-GPC2233-14C-H3.txt file to run...
IService::next INFO Writing results to /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_025_B_H6/1/
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002153
Metadata
Value
Component type
X
Operator
Kirsten Affolder
Date
2023-07-25T23:48:42.593+00:00
Program version
MetrologyHybrid_PROD_X_v0/PPB_cloneable_v0_DB102
Instrument
SmartScope Flash 250
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Electrical results
Electrical summaries will be given below
ElectricalSvc::getListOfFilesFromDir INFO Scanning for test files GPC2233_X_003_C_H6/20USBHX2001492
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2233_X_003_C_H6_20230814.txt
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2233_X_003_C_H6_RC_2_4.txt
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2233_X_003_C_H6_RC_2_7.txt
ElectricalSvc::getListOfJsonFilesFromDir INFO Scanning for test files GPC2233_X_003_C_H6/20USBHX2001492
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_003_C_H6_20230814_2_2_PEDESTAL_TRIM_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_003_C_H6_20230814_2_3_STROBE_DELAY_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_003_C_H6_20230814_2_4_RESPONSE_CURVE_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_003_C_H6_20230814_2_7_RESPONSE_CURVE_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_003_C_H6_20230814_2_17_NO_PPA.json
ElectricalSvc::read INFO Found 2 results files...
ElectricalSvc::read INFO Analyzing test ResponseCurve for component GPC2233_X_003_C_H6
ElectricalSvc::read INFO Detected 0 dead channels
ElectricalSvc::read INFO Detected 0 stuck channels
ElectricalSvc::read INFO Detected 0 low gain channels
ElectricalSvc::read INFO Detected 0 high gain channels
ElectricalSvc::read INFO Detected 0 low offset channels
ElectricalSvc::read INFO Detected 0 high offset channels
ElectricalSvc::read INFO Detected 2557 unbonded channels
ElectricalSvc::read INFO Detected 0 part bonded channels
ElectricalSvc::read INFO Detected 0 high noise channels
ElectricalSvc::read INFO Detected 0 inefficient channels
ElectricalSvc::load_asic_db INFO Reading ASIC database file /home/data/upload//ElectricalHybrids_PPB_v1//GPC2233_X_003_C_H6_GAIN_TEST.json
IService::UPLOADDB INFO Working on test code PEDESTAL_TRIM_PPA
IService::UPLOADDB INFO Working on test code STROBE_DELAY_PPA
IService::UPLOADDB INFO Working on test code RESPONSE_CURVE_PPA
IService::UPLOADDB INFO Working on test code NO_PPA
IService::log INFO Logging status 1111 for component GPC2233_X_003_C_H6
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_003_C_H6/ElectricalHybrids_PPB_v1-1/
IService::install INFO File already installed: warningLog.txt...
IService::install INFO File already installed: errorLog.txt...
IService::install INFO File already installed: infoLog.txt...
IService::install INFO File already installed: Gain_Channel1D.pdf...
IService::install INFO File already installed: DB_READY_PEDESTAL_TRIM_PPA_GPC2233_X_003_C_H6_20230814_2_2_PEDESTAL_TRIM_PPA.json...
IService::install INFO File already installed: DB_READY_STROBE_DELAY_PPA_GPC2233_X_003_C_H6_20230814_2_3_STROBE_DELAY_PPA.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_PPA_GPC2233_X_003_C_H6_20230814_2_4_RESPONSE_CURVE_PPA.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_PPA_GPC2233_X_003_C_H6_20230814_2_7_RESPONSE_CURVE_PPA.json...
IService::install INFO File already installed: DB_READY_NO_PPA_GPC2233_X_003_C_H6_20230814_2_17_NO_PPA.json...
IService::install INFO File already installed: GPC2233_X_003_C_H6.root...
IService::install INFO File already installed: status.json...
MetaData::readField INFO Reading file /home/data/upload//ElectricalHybrids_PPB_v1//GPC2230_X_015_A_H6.config
IService::next INFO Scheduling Panel53_Aug14 file to run...
IService::next INFO Writing results to /home/data/output//ElectricalHybrids_PPB_v1//GPC2230_X_015_A_H6/1/
ElectricalSvc::load_asic_db WARNING Could not find database ASIC GAIN_TEST results for GPC2233_X_003_C_H6
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002153
Defect
Number of channels (%)
Dead
0
Stuck
0
Low gain
0
High gain
0
Low offset
0
High offset
0
Unbonded
2557
Part bonded
0
High noise
0
Inefficient
0
Figures of gain and noise, and correlations with wafer/hybrid level test results, if they exist.
Electrical results
Electrical summaries will be given below
ElectricalSvc::getListOfFilesFromDir INFO Scanning for test files GPC2233_X_003_C_H6/20USBHX2001492
ElectricalSvc::getListOfJsonFilesFromDir INFO Scanning for test files GPC2233_X_003_C_H6/20USBHX2001492
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_003_C_H6_NO_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_003_C_H6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_003_C_H6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_003_C_H6_STROBE_DELAY_BURNIN.json
ElectricalSvc::read INFO Found 0 results files...
ElectricalSvc::load_asic_db INFO Reading ASIC database file /home/data/upload//BurnInHybrids_PROD_v2//GPC2233_X_003_C_H6_GAIN_TEST.json
IService::UPLOADDB INFO Working on test code PEDESTAL_TRIM_BURNIN
IService::UPLOADDB INFO Working on test code STROBE_DELAY_BURNIN
IService::UPLOADDB INFO Working on test code RESPONSE_CURVE_BURNIN
IService::UPLOADDB INFO Working on test code NO_BURNIN
IService::log INFO Logging status 1111 for component GPC2233_X_003_C_H6
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_003_C_H6/BurnInHybrids_PROD_v2-1/
IService::install INFO File already installed: warningLog.txt...
IService::install INFO File already installed: errorLog.txt...
IService::install INFO File already installed: infoLog.txt...
IService::install INFO File already installed: DB_READY_PEDESTAL_TRIM_BURNIN_GPC2233_X_003_C_H6_PEDESTAL_TRIM_BURNIN.json...
IService::install INFO File already installed: DB_READY_STROBE_DELAY_BURNIN_GPC2233_X_003_C_H6_STROBE_DELAY_BURNIN.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_BURNIN_GPC2233_X_003_C_H6_RESPONSE_CURVE_BURNIN.json...
IService::install INFO File already installed: DB_READY_NO_BURNIN_GPC2233_X_003_C_H6_NO_BURNIN.json...
IService::install INFO File already installed: GPC2233_X_003_C_H6.root...
IService::install INFO File already installed: status.json...
MetaData::readField INFO Reading file /home/data/upload//BurnInHybrids_PROD_v2//GPC2230_X_015_A_H6.config
IService::next INFO Scheduling BurnIn_48_49_50_51_52_53_Aug14_merged file to run...
IService::next INFO Writing results to /home/data/output//BurnInHybrids_PROD_v2//GPC2230_X_015_A_H6/1/
ElectricalSvc::load_asic_db WARNING Could not find database ASIC GAIN_TEST results for GPC2233_X_003_C_H6
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002153
Figures of gain and noise, and correlations with wafer/hybrid level test results, if they exist.
