Shown below are results for the glue weight measurements
IService::UPLOADDB INFO Working on test code ASIC_GLUE_WEIGHT
GlueWeightSvc::uploadDB INFO Formatting database test for ASIC_GLUE_WEIGHT
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 1111 for component GPC2233_X_011_B_H1
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_011_B_H1/GlueWeightHybridASIC_PROD_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...

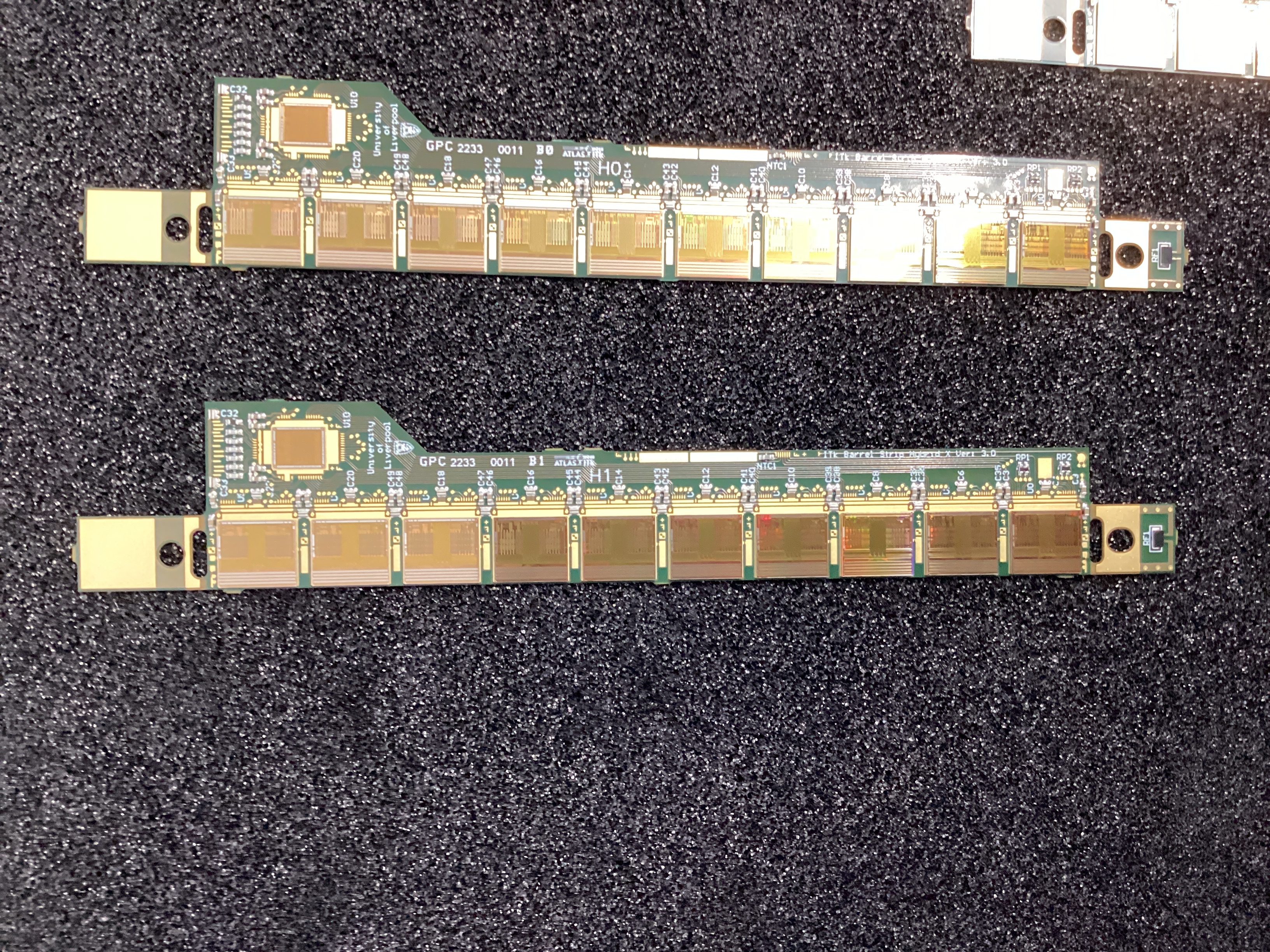

IService::install INFO Installed 20USBHX2001382_image.jpg...
IService::install INFO Installed DB_COMMENTS.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_GLUE_WEIGHT.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2233_X_011_B_H1.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//GlueWeightHybridASIC_PROD_v1//20USBHX2001383.config
IService::next INFO Scheduling Data_20USBHX2001383.json file to run...
IService::next INFO Writing results to /home/data/output//GlueWeightHybridASIC_PROD_v1//GPC2233_X_011_B_H2/1/
Metadata
Value
Component type
Operator
FMM, AND
Date
2023-06-05T22:38:35.025+00:00
Program
ASIC_X_PPB
Field
Weight/Volume
Assummed density of glue
1.077
Total volume of ASIC glue [uL]
41.511
Volume per glue dot [nL]
798.298
Weight of glue under ASICs [mg]
44.700
Weights of bare hybrid [g]
2.300
Weights of stuffed hybrid [g]
2.345
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeHybridThickness INFO Total stack up 845.131000, chip thickness 300.000000 and glue 122.911750, giving hybrid 422.219250 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 838.938914, chip thickness 300.000000 and glue 119.779222, giving hybrid 419.159692 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 835.470609, chip thickness 300.000000 and glue 114.841083, giving hybrid 420.629526 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 830.312147, chip thickness 300.000000 and glue 112.687139, giving hybrid 417.625008 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 828.031620, chip thickness 300.000000 and glue 113.759778, giving hybrid 414.271842 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 827.961394, chip thickness 300.000000 and glue 112.144750, giving hybrid 415.816644 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 828.406355, chip thickness 300.000000 and glue 110.960917, giving hybrid 417.445438 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 825.174837, chip thickness 300.000000 and glue 110.401889, giving hybrid 414.772948 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 832.491643, chip thickness 300.000000 and glue 110.927583, giving hybrid 421.564059 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 834.995424, chip thickness 300.000000 and glue 111.077750, giving hybrid 423.917674 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 833.144500, chip thickness 300.000000 and glue 109.483375, giving hybrid 423.661125 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_011_B_H1/1//Data__GPC2233_X_011_B_H1.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_011_B_H1/1//Results__GPC2233_X_011_B_H1.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_011_B_H1/1//Data__GPC2233_X_011_B_H1.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_011_B_H1/1//Results__GPC2233_X_011_B_H1.txt
IService::log INFO Logging status 1111 for component GPC2233_X_011_B_H1
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_011_B_H1/MetrologyHybrid_PROD_X_v0-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed Summary.pdf...
IService::install INFO Installed TotalStackUp.pdf...
IService::install INFO Installed HybridThickness.pdf...
IService::install INFO Installed Positions.pdf...
IService::install INFO Installed Tilt.pdf...
IService::install INFO Installed Data__GPC2233_X_011_B_H1.txt...
IService::install INFO Installed Results__GPC2233_X_011_B_H1.txt...
IService::install INFO Installed Results.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO Installed GPC2233_X_011_B_H1.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//MetrologyHybrid_PROD_X_v0//GPC2233_X_011_B_H2.config
IService::next INFO Scheduling GPC2233-X-11B-H0-5.txt file to run...
IService::next INFO Writing results to /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_011_B_H2/1/
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002288
Measurement::addPoint ERROR Unknown type ?! Ignoring!
Metadata
Value
Component type
X
Operator
Kirsten Affolder
Date
2023-06-06T18:06:56.709+00:00
Program version
MetrologyHybrid_PROD_X_v0/PPB_cloneable_v0_DB102
Instrument
SmartScope Flash 250
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeHybridThickness INFO Total stack up 1005.055000, chip thickness 300.000000 and glue 101.747750, giving hybrid 603.307250 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1005.301189, chip thickness 300.000000 and glue 112.886222, giving hybrid 592.414967 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1001.364450, chip thickness 300.000000 and glue 103.852861, giving hybrid 597.511589 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 998.971146, chip thickness 300.000000 and glue 100.063889, giving hybrid 598.907257 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1000.322390, chip thickness 300.000000 and glue 101.731528, giving hybrid 598.590862 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1000.299025, chip thickness 300.000000 and glue 98.825389, giving hybrid 601.473636 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 999.663543, chip thickness 300.000000 and glue 100.264583, giving hybrid 599.398960 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 990.831990, chip thickness 300.000000 and glue 97.273250, giving hybrid 593.558740 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 990.647920, chip thickness 300.000000 and glue 102.625028, giving hybrid 588.022893 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 993.582740, chip thickness 300.000000 and glue 95.521500, giving hybrid 598.061240 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1000.587000, chip thickness 300.000000 and glue 106.649375, giving hybrid 593.937625 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2//GPC2233_X_011_B_H1/1//Data__GPC2233_X_011_B_H1.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2//GPC2233_X_011_B_H1/1//Results__GPC2233_X_011_B_H1.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2//GPC2233_X_011_B_H1/1//Data__GPC2233_X_011_B_H1.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2//GPC2233_X_011_B_H1/1//Results__GPC2233_X_011_B_H1.txt
IService::log INFO Logging status 0111 for component GPC2233_X_011_B_H1
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_011_B_H1/MetrologyHybrid_PROD_X_v2-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed Summary.pdf...
IService::install INFO Installed TotalStackUp.pdf...
IService::install INFO Installed HybridThickness.pdf...
IService::install INFO Installed Positions.pdf...
IService::install INFO Installed Tilt.pdf...
IService::install INFO Installed Data__GPC2233_X_011_B_H1.txt...
IService::install INFO Installed Results__GPC2233_X_011_B_H1.txt...
IService::install INFO Installed Results.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO Installed GPC2233_X_011_B_H1.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name HybridToSensorMetrology_v2a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPA_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_wuerth_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
IService::addStageTransformation INFO Adding allow stage transformation from "STUFFED" to "BARE"
IService::addStageTransformation INFO Adding allow stage transformation from "BARE" to "SMD"
IService::addStageTransformation INFO Adding allow stage transformation from "FAILED_ELECTRICAL" to "SMD"
IService::addStageTransformation INFO Adding allow stage transformation from "SMD" to "ASIC"
IService::addStageTransformation INFO Adding allow stage transformation from "HV_TAB_ATTACHED" to "GLUED"
IService::addStageTransformation INFO Adding allow stage transformation from "HV_TAB_ATTACHED" to "GLUED"
IService::addStageTransformation INFO Adding allow stage transformation from "ASIC_ATTACHMENT" to "WIRE_BONDING"
IService::addStageTransformation INFO Adding allow stage transformation from "GLUED" to "BONDED"
IService::addStageTransformation INFO Adding allow stage transformation from "BARE" to "SMD"
IService::addStageTransformation INFO Adding allow stage transformation from "THERMAL" to "MODULE_RCP"
IService::addStageTransformation INFO Adding allow stage transformation from "BONDED" to "MODULE_RCP"
IService::addStageTransformation INFO Adding allow stage transformation from "BURN_IN" to "MODULE_RCP"
IService::addStageTransformation INFO Adding allow stage transformation from "ON_WAFER" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "PROBING" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "FAILED_VI" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "CATEGORY_A" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "CATEGORY_C" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "CATEGORY_T" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "CATEGORY_X" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "CATEGORY_B" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "ON_WAFER" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "PROBING" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "FAILED_VI" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "CATEGORY_A" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "CATEGORY_C" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "CATEGORY_T" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "CATEGORY_X" to "BOND_PULLING"
IService::addStageTransformation INFO Adding allow stage transformation from "CATEGORY_B" to "BOND_PULLING"
IService::addFailFlag INFO Adding fail flag "FAILED_MODULE_RECEPTION"
IService::addPassFlag INFO Adding passed flag "PASSED_MODULE_RECEPTION"
IService::addStageTransformation INFO Adding allow stage transformation from "WIRE_BONDING" to "BURN_IN"
IService::addPostStageTransformation INFO Adding post stage transformation from "BURN_IN" to "FINISHED_HYBRID"
IService::addPostStageTransformation INFO Adding post stage transformation from "FINISHED_HYBRID" to "AT_MODULE_ASSEMBLY_SITE"
IService::addStageTransformation INFO Adding allow stage transformation from "WIRE_BONDING" to "BURN_IN"
IService::addPostStageTransformation INFO Adding post stage transformation from "BURN_IN" to "FINISHED_HYBRID"
IService::addPostStageTransformation INFO Adding post stage transformation from "FINISHED_HYBRID" to "AT_MODULE_ASSEMBLY_SITE"
IService::addStageTransformation INFO Adding allow stage transformation from "BONDED" to "TESTED"
TopControl::initialize INFO Running initialization...
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
VisualInspectionSvc::initialize INFO Writing outputs into /home/data/output//HybridFlexArrayVI_v1///1/
VisualInspectionSvc::add_general INFO Added a general visual inspection key with "Overall visual inspection"
VisualInspectionSvc::add_hybrid_flex_... INFO Added a hybrid flex arrray inspection key with "Damage to array"
VisualInspectionSvc::add_hybrid_flex_... INFO Added a hybrid flex arrray inspection key with "Damage to hybrid flex"
VisualInspectionSvc::add_hybrid_flex_... INFO Added a hybrid flex arrray inspection key with "Component damage"
VisualInspectionSvc::add_hybrid_flex_... INFO Added a hybrid flex arrray inspection key with "Components were missing"
VisualInspectionSvc::add_hybrid_flex_... INFO Added a hybrid flex arrray inspection key with "Scratches were found"
VisualInspectionSvc::add_hybrid_flex_... INFO Added a hybrid flex arrray inspection key with "Cleaning"
VisualInspectionSvc::add_hybrid_flex_... INFO Added a hybrid flex arrray inspection key with "Other"
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
VisualInspectionSvc::initialize INFO Writing outputs into /home/data/output//SensorVI_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
GlueWeightSvc::initialize INFO Writing outputs into /home/data/output//ASICGlueWeight///1/
GlueWeightSvc::initialize INFO Calculations assuming a glue density of 1.076811
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
GlueWeightSvc::initialize INFO Writing outputs into /home/data/output//ASICGlueWeight_v1///1/
GlueWeightSvc::initialize INFO Calculations assuming a glue density of 1.076811
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
GlueWeightSvc::initialize INFO Writing outputs into /home/data/output//GlueWeightHybridASIC_PPB_v1///1/
GlueWeightSvc::initialize INFO Calculations assuming a glue density of 1.076811
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
GlueWeightSvc::initialize INFO Writing outputs into /home/data/output//GlueWeightHybridASIC_PROD_v1///1/
GlueWeightSvc::initialize INFO Calculations assuming a glue density of 1.076811
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
GlueWeightSvc::initialize INFO Writing outputs into /home/data/output//GlueWeightHybridASIC_PROD_v2///1/
GlueWeightSvc::initialize INFO Calculations assuming a glue density of 1.076811
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
GlueWeightSvc::initialize INFO Writing outputs into /home/data/output//GlueWeightModule_LS_PPA///1/
GlueWeightSvc::initialize INFO Calculations assuming a glue density of 1.132242
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
GlueWeightSvc::initialize INFO Writing outputs into /home/data/output//GlueWeightModule_SS_PPA///1/
GlueWeightSvc::initialize INFO Calculations assuming a glue density of 1.132242
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
WireBondSvc::initialize INFO Writing outputs into /home/data/output//HybridBonding_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
WireBondSvc::initialize INFO Writing outputs into /home/data/output//ModuleBonding_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PullTestSvc::initialize INFO Writing outputs into /home/data/output//HybridPullTest///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PullTestSvc::initialize INFO Writing outputs into /home/data/output//PullTestCicorelCard///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PullTestSvc::initialize INFO Writing outputs into /home/data/output//HybridFlexArray_PullTest_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PullTestSvc::initialize INFO Writing outputs into /home/data/output//Powerboards_PullTest_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PullTestSvc::initialize INFO Writing outputs into /home/data/output//ABC_PullTest_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PullTestSvc::initialize INFO Writing outputs into /home/data/output//ABC_Wafer_PullTest_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PullTestSvc::initialize INFO Writing outputs into /home/data/output//HCC_PullTest_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PullTestSvc::initialize INFO Writing outputs into /home/data/output//SensorBondingQC_PPB_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PullTestSvc::initialize INFO Writing outputs into /home/data/output//HVTabSheet_SheerTest_Before_PPB_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PullTestSvc::initialize INFO Writing outputs into /home/data/output//HVTabSheet_SheerTest_After_PPB_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PictureSvc::initialize INFO Writing outputs into /home/data/output//PhotoUpload///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PictureSvc::initialize INFO Writing outputs into /home/data/output//PictureModule///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
PictureSvc::initialize INFO Writing outputs into /home/data/output//GeneralPictures///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
SensorIVSvc::initialize INFO Writing outputs into /home/data/output//PreHVTabIV///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
SensorIVSvc::initialize INFO Writing outputs into /home/data/output//SensorIV_PreTabIV_PPB_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
SensorIVSvc::initialize INFO Writing outputs into /home/data/output//Module_postHVTabIV_LS_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
SensorIVSvc::initialize INFO Writing outputs into /home/data/output//SensorIV_PostTabIV_PPB_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
SensorIVSvc::initialize INFO Writing outputs into /home/data/output//ElectricalIV///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
SensorIVSvc::initialize INFO Writing outputs into /home/data/output//SensorIV_Module_PPB_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
SensorIVSvc::initialize INFO Writing outputs into /home/data/output//SensorIV_AMACIV_PPB_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//SixWayJig_Y_slots///1/
MetrologySvc::initialize INFO Configured to run with a total of 1 surfaces
MetrologySvc::loadReferenceFile INFO User didn't specify a reference file! Won't load anything!
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//HybridMetrology///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO User didn't specify a reference file! Won't load anything!
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//HybridPanelMetrology///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (0.899000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (8.501000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (10.563000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (18.165000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (20.227000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (27.829000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (29.891000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (37.493000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (39.555000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (47.157000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (49.219000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (56.821000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (58.883000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (66.485000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (68.547000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (76.149000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (78.211000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (85.813000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (87.875000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (95.477000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.721000,7.319000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.653000,7.319000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.721000,10.555000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.653000,10.555000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//HybridPanelMetrology_v7///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (0.899000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (8.501000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (10.563000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (18.165000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (20.227000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (27.829000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (29.891000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (37.493000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (39.555000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (47.157000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (49.219000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (56.821000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (58.883000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (66.485000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (68.547000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (76.149000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (78.211000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (85.813000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (87.875000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (95.477000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.721000,7.319000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.653000,7.319000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.721000,10.555000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.653000,10.555000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//HybridMetrology_v8///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (0.899000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (8.501000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (10.563000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (18.165000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (20.227000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (27.829000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (29.891000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (37.493000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (39.555000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (47.157000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (49.219000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (56.821000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (58.883000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (66.485000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (68.547000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (76.149000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (78.211000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (85.813000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (87.875000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (95.477000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.721000,7.319000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.653000,7.319000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.721000,10.555000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.653000,10.555000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//HybridMetrology_Y_v8///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions_Y.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_9 with (x,y) = (0.875000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_9 with (x,y) = (8.478000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_8 with (x,y) = (10.539000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_8 with (x,y) = (18.142000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_7 with (x,y) = (20.203000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_7 with (x,y) = (27.806000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_6 with (x,y) = (29.867000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_6 with (x,y) = (37.470000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_5 with (x,y) = (39.531000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_5 with (x,y) = (47.134000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_4 with (x,y) = (49.195000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_4 with (x,y) = (56.798000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_3 with (x,y) = (58.859000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_3 with (x,y) = (66.462000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_2 with (x,y) = (68.523000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_2 with (x,y) = (76.126000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_1 with (x,y) = (78.187000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_1 with (x,y) = (85.790000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_0 with (x,y) = (87.851000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_0 with (x,y) = (95.454000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (6.698000,7.315000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (11.629000,7.315000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (6.698000,10.551000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (11.629000,10.551000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyHybrid_v10///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (0.899000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (8.501000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (10.563000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (18.165000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (20.227000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (27.829000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (29.891000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (37.493000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (39.555000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (47.157000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (49.219000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (56.821000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (58.883000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (66.485000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (68.547000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (76.149000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (78.211000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (85.813000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (87.875000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (95.477000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.721000,7.319000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.653000,7.319000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.721000,10.555000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.653000,10.555000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyHybrid_v10-beta///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (0.899000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (8.501000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (10.563000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (18.165000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (20.227000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (27.829000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (29.891000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (37.493000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (39.555000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (47.157000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (49.219000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (56.821000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (58.883000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (66.485000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (68.547000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (76.149000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (78.211000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (85.813000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (87.875000,1.198000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (95.477000,1.198000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.721000,7.319000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.653000,7.319000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.721000,10.555000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.653000,10.555000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyHybrid_PPB_X_v0///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions_X_PPB.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (0.907000,1.186000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (8.500900,1.186000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (10.571000,1.187000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (18.173000,1.187000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (20.235000,1.188000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (27.837000,1.188000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (29.899000,1.190000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (37.501000,1.190000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (39.563000,1.191000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (47.165000,1.191000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (49.227000,1.192000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (56.829000,1.192000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (58.891000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (66.493000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (68.555000,1.194000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (76.157000,1.194000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (78.219000,1.196000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (85.821000,1.196000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (87.883000,1.197000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (95.485000,1.197000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.727000,7.188000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.658000,7.188000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.727000,11.187000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.658000,11.187000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyHybrid_PPB_Y_v0///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions_Y_PPB.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_0 with (x,y) = (0.876000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_0 with (x,y) = (8.478000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_1 with (x,y) = (10.540000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_1 with (x,y) = (18.142000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_2 with (x,y) = (20.204000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_2 with (x,y) = (27.806000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_3 with (x,y) = (29.868000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_3 with (x,y) = (37.470000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_4 with (x,y) = (39.532000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_4 with (x,y) = (47.134000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_5 with (x,y) = (49.196000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_5 with (x,y) = (56.798000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_6 with (x,y) = (58.860000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_6 with (x,y) = (66.462000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_7 with (x,y) = (68.524000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_7 with (x,y) = (76.126000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_8 with (x,y) = (78.188000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_8 with (x,y) = (85.790000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_9 with (x,y) = (87.852000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_9 with (x,y) = (95.454000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (6.696000,7.203000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (11.628000,7.203000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (6.696000,11.200000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (11.628000,11.200000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyHybrid_PROD_X_v0///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions_X_PPB.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (0.907000,1.186000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (8.500900,1.186000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (10.571000,1.187000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (18.173000,1.187000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (20.235000,1.188000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (27.837000,1.188000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (29.899000,1.190000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (37.501000,1.190000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (39.563000,1.191000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (47.165000,1.191000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (49.227000,1.192000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (56.829000,1.192000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (58.891000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (66.493000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (68.555000,1.194000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (76.157000,1.194000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (78.219000,1.196000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (85.821000,1.196000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (87.883000,1.197000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (95.485000,1.197000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.727000,7.188000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.658000,7.188000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.727000,11.187000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.658000,11.187000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyHybrid_PROD_Y_v0///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions_Y_PPB.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_0 with (x,y) = (0.876000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_0 with (x,y) = (8.478000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_1 with (x,y) = (10.540000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_1 with (x,y) = (18.142000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_2 with (x,y) = (20.204000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_2 with (x,y) = (27.806000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_3 with (x,y) = (29.868000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_3 with (x,y) = (37.470000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_4 with (x,y) = (39.532000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_4 with (x,y) = (47.134000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_5 with (x,y) = (49.196000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_5 with (x,y) = (56.798000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_6 with (x,y) = (58.860000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_6 with (x,y) = (66.462000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_7 with (x,y) = (68.524000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_7 with (x,y) = (76.126000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_8 with (x,y) = (78.188000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_8 with (x,y) = (85.790000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_9 with (x,y) = (87.852000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_Y_9 with (x,y) = (95.454000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (6.696000,7.203000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (11.628000,7.203000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (6.696000,11.200000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_Y_0 with (x,y) = (11.628000,11.200000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyHybrid_PROD_X_v1///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions_X_PPB.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (0.907000,1.186000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (8.500900,1.186000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (10.571000,1.187000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (18.173000,1.187000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (20.235000,1.188000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (27.837000,1.188000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (29.899000,1.190000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (37.501000,1.190000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (39.563000,1.191000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (47.165000,1.191000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (49.227000,1.192000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (56.829000,1.192000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (58.891000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (66.493000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (68.555000,1.194000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (76.157000,1.194000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (78.219000,1.196000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (85.821000,1.196000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (87.883000,1.197000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (95.485000,1.197000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.727000,7.188000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.658000,7.188000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.727000,11.187000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.658000,11.187000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyHybrid_PROD_X_v2///1/
MetrologySvc::initialize INFO Configured to run with a total of 11 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/hybrid_positions_X_PPB.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (0.907000,1.186000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_9 with (x,y) = (8.500900,1.186000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (10.571000,1.187000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_8 with (x,y) = (18.173000,1.187000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (20.235000,1.188000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_7 with (x,y) = (27.837000,1.188000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (29.899000,1.190000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_6 with (x,y) = (37.501000,1.190000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (39.563000,1.191000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_5 with (x,y) = (47.165000,1.191000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (49.227000,1.192000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_4 with (x,y) = (56.829000,1.192000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (58.891000,1.193000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_3 with (x,y) = (66.493000,1.193000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (68.555000,1.194000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_2 with (x,y) = (76.157000,1.194000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (78.219000,1.196000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_1 with (x,y) = (85.821000,1.196000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (87.883000,1.197000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point ABC_X_0 with (x,y) = (95.485000,1.197000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.727000,7.188000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.658000,7.188000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (6.727000,11.187000) and instance 2
MetrologySvc::loadReferenceFile INFO Loaded reference point HCC_X_0 with (x,y) = (11.658000,11.187000) and instance 3
MetrologySvc::initialize INFO Identified component HYBRID with test type HYBRID_METROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//HybridToSensorMetrology_v2a///1/
MetrologySvc::initialize INFO Configured to run with a total of 2 surfaces
MetrologySvc::loadReferenceFile INFO User didn't specify a reference file! Won't load anything!
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyModules_v8///1/
MetrologySvc::initialize INFO Configured to run with a total of 18 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/module_LS_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P1 with (x,y) = (0.788000,39.673000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P2 with (x,y) = (97.188000,39.673000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P1 with (x,y) = (24.951000,24.611000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P2 with (x,y) = (93.201000,24.611000) and instance 1
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyModules_v8a///1/
MetrologySvc::initialize INFO Configured to run with a total of 18 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/module_LS_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P1 with (x,y) = (0.788000,39.673000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P2 with (x,y) = (97.188000,39.673000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P1 with (x,y) = (24.951000,24.611000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P2 with (x,y) = (93.201000,24.611000) and instance 1
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyModules_PPA_SS_v1///1/
MetrologySvc::initialize INFO Configured to run with a total of 32 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/module_SS_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P1 with (x,y) = (0.788000,63.873000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P2 with (x,y) = (97.188000,63.873000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point H_Y_P1 with (x,y) = (0.812000,33.753000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_Y_P2 with (x,y) = (97.188000,33.753000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P1 with (x,y) = (24.951000,48.811000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P2 with (x,y) = (93.201000,48.811000) and instance 1
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyModules_PPB_SS_v1///1/
MetrologySvc::initialize INFO Configured to run with a total of 33 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/module_SS_PPB_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P1 with (x,y) = (0.780000,63.861000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P2 with (x,y) = (97.188000,63.861000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point H_Y_P1 with (x,y) = (0.812000,33.753000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_Y_P2 with (x,y) = (97.188000,33.753000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P1 with (x,y) = (23.200000,48.849000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P2 with (x,y) = (93.273000,47.674000) and instance 1
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyModules_PPB_SS_wuerth_v1///1/
MetrologySvc::initialize INFO Configured to run with a total of 33 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/module_SS_PPB_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P1 with (x,y) = (0.780000,63.861000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P2 with (x,y) = (97.188000,63.861000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point H_Y_P1 with (x,y) = (0.812000,33.753000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_Y_P2 with (x,y) = (97.188000,33.753000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P1 with (x,y) = (23.200000,48.849000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P2 with (x,y) = (93.273000,47.674000) and instance 1
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyModules_PPB_LS_v1///1/
MetrologySvc::initialize INFO Configured to run with a total of 19 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/module_LS_PPB_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P1 with (x,y) = (0.780000,39.660000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P2 with (x,y) = (97.188000,39.673000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P1 with (x,y) = (93.273000,23.474000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P2 with (x,y) = (23.200000,24.649000) and instance 1
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyModules_PROD_LS_v1///1/
MetrologySvc::initialize INFO Configured to run with a total of 19 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/module_LS_PPB_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P1 with (x,y) = (0.780000,39.660000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P2 with (x,y) = (97.188000,39.673000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P1 with (x,y) = (93.273000,23.474000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P2 with (x,y) = (23.200000,24.649000) and instance 1
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//MetrologyModules_PROD_SS_v1///1/
MetrologySvc::initialize INFO Configured to run with a total of 33 surfaces
MetrologySvc::loadReferenceFile INFO Loading reference file data/metrology/module_SS_PPB_positions.txt...
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P1 with (x,y) = (0.780000,63.861000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_X_P2 with (x,y) = (97.188000,63.861000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point H_Y_P1 with (x,y) = (0.812000,33.753000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point H_Y_P2 with (x,y) = (97.188000,33.753000) and instance 1
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P1 with (x,y) = (23.200000,48.849000) and instance 0
MetrologySvc::loadReferenceFile INFO Loaded reference point PB_P2 with (x,y) = (93.273000,47.674000) and instance 1
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//ModuleLS_Bow_PPA_v0///1/
MetrologySvc::initialize INFO Configured to run with a total of 1 surfaces
MetrologySvc::loadReferenceFile INFO User didn't specify a reference file! Won't load anything!
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
MetrologySvc::initialize INFO Writing outputs into /home/data/output//ModuleSS_Bow_PPA_v0///1/
MetrologySvc::initialize INFO Configured to run with a total of 1 surfaces
MetrologySvc::loadReferenceFile INFO User didn't specify a reference file! Won't load anything!
MetrologySvc::initialize INFO Identified component MODULE with test type MMETROLOGY
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
ElectricalSvc::initialize INFO Writing outputs into /home/data/output//ElectricalHybrids///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
ElectricalSvc::initialize INFO Writing outputs into /home/data/output//ElectricalHybrids_PPB_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
ElectricalSvc::initialize INFO Writing outputs into /home/data/output//BurnInHybrids_PPB_v1///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
ElectricalSvc::initialize INFO Writing outputs into /home/data/output//BurnInHybrids_PROD_v2///1/
IService::INITIALIZE() INFO User did not provide a MetaData object. Creating a fresh one now
ElectricalSvc::initialize INFO Writing outputs into /home/data/output//ElectricalModules_PPA_v1///1/
TopControl::monitor INFO Service with algoirthm name HybridFlexArrayVI_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorVI_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ASICGlueWeight ignored through users request!
TopControl::monitor INFO Service with algoirthm name ASICGlueWeight_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name GlueWeightHybridASIC_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name GlueWeightHybridASIC_PROD_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name GlueWeightHybridASIC_PROD_v2 ignored through users request!
TopControl::monitor INFO Serivce GlueWeightModule_LS_PPA has 1 files to process! Proceeding...
MetaData::readField INFO Reading file /home/data/upload//GlueWeightModule_LS_PPA//SCIPP-LS-0051-1.config
IService::next INFO Scheduling Data_SCIPP-LS-0051-1.json file to run...
IService::next INFO Writing results to /home/data/output//GlueWeightModule_LS_PPA//SCIPP-LS-0051/1/
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002288
MetrologySvc::PassFail WARNING Identified a total of 11 objects outside tolerence!!
IService::PASSFAIL WARNING Service GPC2233_X_011_B_H1 has failed criteria!
MetrologySvc::PassFail WARNING Identified a total of 11 objects outside tolerence!!
MetrologySvc::PassFail WARNING Identified a total of 11 objects outside tolerence!!
MetrologySvc::PassFail WARNING Identified a total of 11 objects outside tolerence!!
MetrologySvc::setTolerenceDetailed WARNING Already have tolerance defined for HCC_X_0! Not overwriting!
MetrologySvc::setTolerenceDetailed WARNING Already have tolerance defined for HCC_X_0! Not overwriting!
MetrologySvc::setTolerenceDetailed WARNING Already have tolerance defined for HCC_X_0! Not overwriting!
✔ Component is at UCSC. OK to upload
✔ Service has no required stages or transformations. Allowing for upload, but careful! OK to upload
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeHybridThickness INFO Total stack up 1005.055000, chip thickness 300.000000 and glue 101.747750, giving hybrid 603.307250 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1005.301189, chip thickness 300.000000 and glue 112.886222, giving hybrid 592.414967 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1001.364450, chip thickness 300.000000 and glue 103.852861, giving hybrid 597.511589 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 998.971146, chip thickness 300.000000 and glue 100.063889, giving hybrid 598.907257 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1000.322390, chip thickness 300.000000 and glue 101.731528, giving hybrid 598.590862 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1000.299025, chip thickness 300.000000 and glue 98.825389, giving hybrid 601.473636 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 999.663543, chip thickness 300.000000 and glue 100.264583, giving hybrid 599.398960 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 990.831990, chip thickness 300.000000 and glue 97.273250, giving hybrid 593.558740 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 990.647920, chip thickness 300.000000 and glue 102.625028, giving hybrid 588.022893 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 993.582740, chip thickness 300.000000 and glue 95.521500, giving hybrid 598.061240 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1000.587000, chip thickness 300.000000 and glue 106.649375, giving hybrid 593.937625 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2233_X_011_B_H1/1//Data__GPC2233_X_011_B_H1.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2233_X_011_B_H1/1//Results__GPC2233_X_011_B_H1.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2233_X_011_B_H1/1//Data__GPC2233_X_011_B_H1.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2233_X_011_B_H1/1//Results__GPC2233_X_011_B_H1.txt
IService::log INFO Logging status 0111 for component GPC2233_X_011_B_H1
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_011_B_H1/MetrologyHybrid_PROD_X_v2_thick_interposer-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed Summary.pdf...
IService::install INFO Installed TotalStackUp.pdf...
IService::install INFO Installed HybridThickness.pdf...
IService::install INFO Installed Positions.pdf...
IService::install INFO Installed Tilt.pdf...
IService::install INFO Installed Data__GPC2233_X_011_B_H1.txt...
IService::install INFO Installed Results__GPC2233_X_011_B_H1.txt...
IService::install INFO Installed Results.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO Installed GPC2233_X_011_B_H1.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2233_X_011_B_H2-1.config
IService::next INFO Scheduling GPC2233-X-011-B2_interposed.txt file to run...
IService::next INFO Writing results to /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2233_X_011_B_H2/1/
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002288
✔ Component is at UCSC. OK to upload
✔ Service has no required stages or transformations. Allowing for upload, but careful! OK to upload
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Wirebonding for GPC2233_X_011_B_H1
Wirebonding summaries will be given below
WireBondSvc::run INFO Loading group FAILED_ASIC_BACKEND
WireBondSvc::run INFO Loading group FAILED_HYBRID_TO_PANEL
WireBondSvc::run INFO Loading group REPAIRED_ASIC_BACKEND
WireBondSvc::run INFO Loading group REPAIRED_HYBRID_TO_PANEL
IService::UPLOADDB INFO Working on test code WIRE_BONDING
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 1111 for component GPC2233_X_011_B_H1
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_011_B_H1/HybridBonding_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_WIRE_BONDING.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2233_X_011_B_H1.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//HybridBonding_v1//GPC2233_X_011_B_H2.config
IService::next INFO Scheduling HybridBonding_GPC2233_X_011_B_H2.json file to run...
IService::next INFO Writing results to /home/data/output//HybridBonding_v1//GPC2233_X_011_B_H2/1/
Metadata
Value
Date
2023-06-08T17:20:55.715+00:00
Operator
FMM
Bonder
hk1
Version
v1
Bond number
Type
Comment
Electrical results
Electrical summaries will be given below
ElectricalSvc::getListOfFilesFromDir INFO Scanning for test files GPC2233_X_011_B_H1/20USBHX2001382
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2233_X_011_B_H1_20230608.txt
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2233_X_011_B_H1_RC_4_3.txt
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2233_X_011_B_H1_RC_4_6.txt
ElectricalSvc::getListOfJsonFilesFromDir INFO Scanning for test files GPC2233_X_011_B_H1/20USBHX2001382
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_011_B_H1_20230608_4_1_PEDESTAL_TRIM_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_011_B_H1_20230608_4_2_STROBE_DELAY_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_011_B_H1_20230608_4_3_RESPONSE_CURVE_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_011_B_H1_20230608_4_6_RESPONSE_CURVE_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_011_B_H1_20230608_4_16_NO_PPA.json
ElectricalSvc::read INFO Found 2 results files...
ElectricalSvc::read INFO Analyzing test ResponseCurve for component GPC2233_X_011_B_H1
ElectricalSvc::read INFO Detected 0 dead channels
ElectricalSvc::read INFO Detected 0 stuck channels
ElectricalSvc::read INFO Detected 0 low gain channels
ElectricalSvc::read INFO Detected 0 high gain channels
ElectricalSvc::read INFO Detected 0 low offset channels
ElectricalSvc::read INFO Detected 0 high offset channels
ElectricalSvc::read INFO Detected 2559 unbonded channels
ElectricalSvc::read INFO Detected 0 part bonded channels
ElectricalSvc::read INFO Detected 0 high noise channels
ElectricalSvc::read INFO Detected 0 inefficient channels
ElectricalSvc::load_asic_db INFO Reading ASIC database file /home/data/upload//ElectricalHybrids_PPB_v1//GPC2233_X_011_B_H1_GAIN_TEST.json
IService::UPLOADDB INFO Working on test code PEDESTAL_TRIM_PPA
IService::UPLOADDB INFO Working on test code STROBE_DELAY_PPA
IService::UPLOADDB INFO Working on test code RESPONSE_CURVE_PPA
IService::UPLOADDB INFO Working on test code NO_PPA
IService::log INFO Logging status 1111 for component GPC2233_X_011_B_H1
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_011_B_H1/ElectricalHybrids_PPB_v1-1/
IService::install INFO File already installed: warningLog.txt...
IService::install INFO File already installed: errorLog.txt...
IService::install INFO File already installed: infoLog.txt...
IService::install INFO File already installed: Gain_Channel1D.pdf...
IService::install INFO File already installed: DB_READY_PEDESTAL_TRIM_PPA_GPC2233_X_011_B_H1_20230608_4_1_PEDESTAL_TRIM_PPA.json...
IService::install INFO File already installed: DB_READY_STROBE_DELAY_PPA_GPC2233_X_011_B_H1_20230608_4_2_STROBE_DELAY_PPA.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_PPA_GPC2233_X_011_B_H1_20230608_4_3_RESPONSE_CURVE_PPA.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_PPA_GPC2233_X_011_B_H1_20230608_4_6_RESPONSE_CURVE_PPA.json...
IService::install INFO File already installed: DB_READY_NO_PPA_GPC2233_X_011_B_H1_20230608_4_16_NO_PPA.json...
IService::install INFO File already installed: GPC2233_X_011_B_H1.root...
IService::install INFO File already installed: status.json...
MetaData::readField INFO Reading file /home/data/upload//ElectricalHybrids_PPB_v1//GPC2233_X_011_B_H2.config
IService::next INFO Scheduling Panel30_June8 file to run...
IService::next INFO Writing results to /home/data/output//ElectricalHybrids_PPB_v1//GPC2233_X_011_B_H2/1/
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002288
Defect
Number of channels (%)
Dead
0
Stuck
0
Low gain
0
High gain
0
Low offset
0
High offset
0
Unbonded
2559
Part bonded
0
High noise
0
Inefficient
0
Figures of gain and noise, and correlations with wafer/hybrid level test results, if they exist.
Electrical results
Electrical summaries will be given below
ElectricalSvc::getListOfFilesFromDir INFO Scanning for test files GPC2233_X_011_B_H1/20USBHX2001382
ElectricalSvc::getListOfJsonFilesFromDir INFO Scanning for test files GPC2233_X_011_B_H1/20USBHX2001382
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_011_B_H1_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_011_B_H1_STROBE_DELAY_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_011_B_H1_NO_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_011_B_H1_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::read INFO Found 0 results files...
ElectricalSvc::load_asic_db INFO Reading ASIC database file /home/data/upload//BurnInHybrids_PROD_v2//GPC2233_X_011_B_H1_GAIN_TEST.json
IService::UPLOADDB INFO Working on test code PEDESTAL_TRIM_BURNIN
IService::UPLOADDB INFO Working on test code STROBE_DELAY_BURNIN
IService::UPLOADDB INFO Working on test code RESPONSE_CURVE_BURNIN
IService::UPLOADDB INFO Working on test code NO_BURNIN
IService::log INFO Logging status 1111 for component GPC2233_X_011_B_H1
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_011_B_H1/BurnInHybrids_PROD_v2-1/
IService::install INFO File already installed: warningLog.txt...
IService::install INFO File already installed: errorLog.txt...
IService::install INFO File already installed: infoLog.txt...
IService::install INFO File already installed: DB_READY_PEDESTAL_TRIM_BURNIN_GPC2233_X_011_B_H1_PEDESTAL_TRIM_BURNIN.json...
IService::install INFO File already installed: DB_READY_STROBE_DELAY_BURNIN_GPC2233_X_011_B_H1_STROBE_DELAY_BURNIN.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_BURNIN_GPC2233_X_011_B_H1_RESPONSE_CURVE_BURNIN.json...
IService::install INFO File already installed: DB_READY_NO_BURNIN_GPC2233_X_011_B_H1_NO_BURNIN.json...
IService::install INFO File already installed: GPC2233_X_011_B_H1.root...
IService::install INFO File already installed: status.json...
MetaData::readField INFO Reading file /home/data/upload//BurnInHybrids_PROD_v2//GPC2233_X_011_B_H2.config
IService::next INFO Scheduling BurnIn_June9_merged file to run...
IService::next INFO Writing results to /home/data/output//BurnInHybrids_PROD_v2//GPC2233_X_011_B_H2/1/
ElectricalSvc::load_asic_db WARNING Could not find database ASIC GAIN_TEST results for GPC2233_X_011_B_H1
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002288
Figures of gain and noise, and correlations with wafer/hybrid level test results, if they exist.
