Shown below are results for the glue weight measurements
IService::UPLOADDB INFO Working on test code ASIC_GLUE_WEIGHT
GlueWeightSvc::uploadDB INFO Formatting database test for ASIC_GLUE_WEIGHT
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 1111 for component GPC2233_X_016_C_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_016_C_H3/GlueWeightHybridASIC_PROD_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...

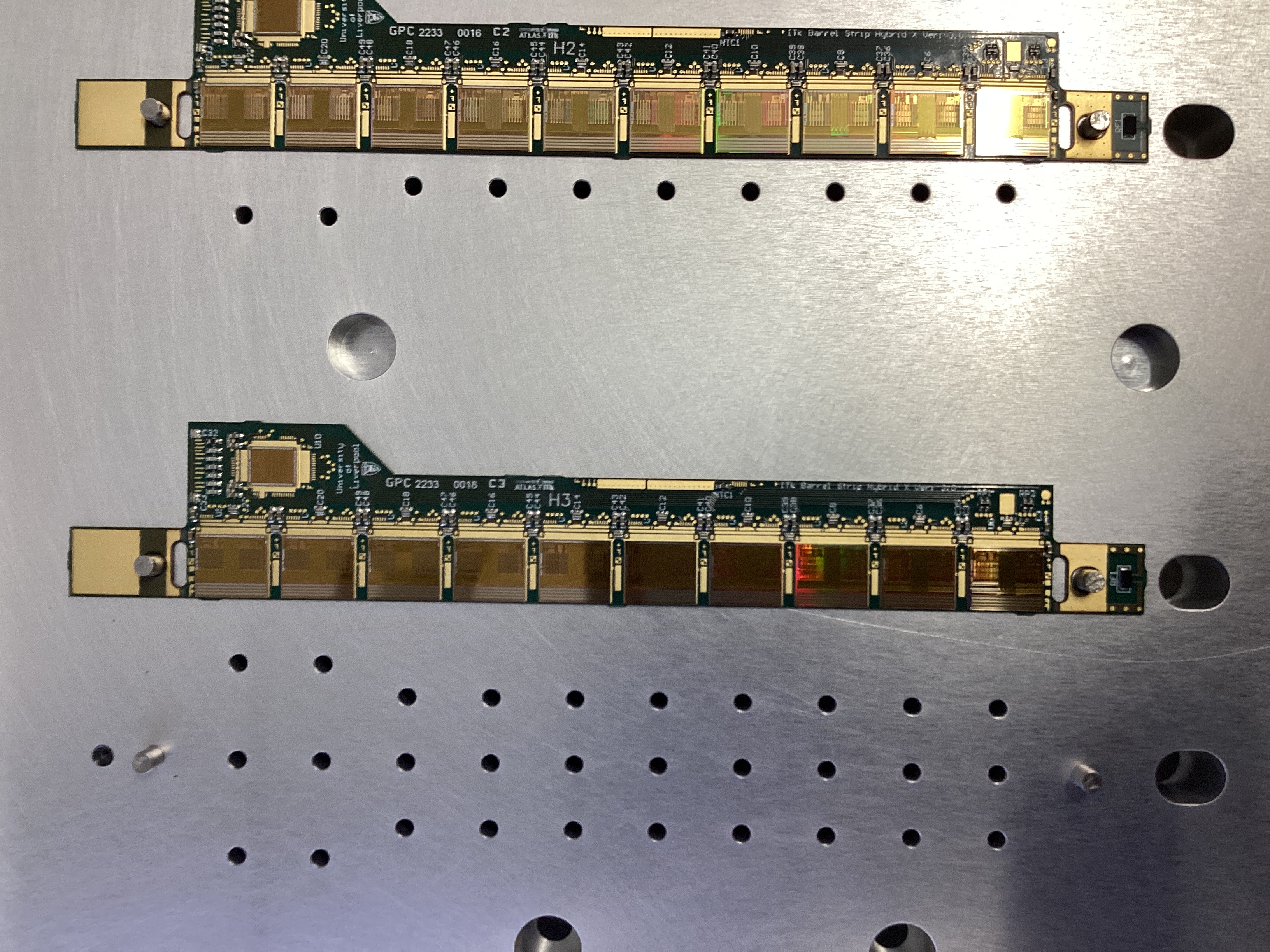

IService::install INFO Installed 20USBHX2001478_image.jpg...
IService::install INFO Installed DB_COMMENTS.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_GLUE_WEIGHT.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2233_X_016_C_H3.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//GlueWeightHybridASIC_PROD_v1//20USBHX2001479.config
IService::next INFO Scheduling Data_20USBHX2001479.json file to run...
IService::next INFO Writing results to /home/data/output//GlueWeightHybridASIC_PROD_v1//GPC2233_X_016_C_H4/1/
Metadata
Value
Component type
Operator
KA FMM
Date
2023-07-24T18:28:59.783+00:00
Program
ASIC X
Field
Weight/Volume
Assummed density of glue
1.077
Total volume of ASIC glue [uL]
39.747
Volume per glue dot [nL]
764.365
Weight of glue under ASICs [mg]
42.800
Weights of bare hybrid [g]
2.314
Weights of stuffed hybrid [g]
2.357
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeHybridThickness INFO Total stack up 845.404500, chip thickness 300.000000 and glue 130.272250, giving hybrid 415.132250 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 838.453066, chip thickness 300.000000 and glue 124.964583, giving hybrid 413.488482 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 836.029414, chip thickness 300.000000 and glue 123.683000, giving hybrid 412.346414 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 830.449565, chip thickness 300.000000 and glue 119.760972, giving hybrid 410.688593 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 825.756400, chip thickness 300.000000 and glue 117.945361, giving hybrid 407.811039 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 824.953891, chip thickness 300.000000 and glue 115.320972, giving hybrid 409.632918 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 825.189428, chip thickness 300.000000 and glue 114.429000, giving hybrid 410.760428 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 823.883000, chip thickness 300.000000 and glue 116.832806, giving hybrid 407.050195 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 827.687955, chip thickness 300.000000 and glue 117.469722, giving hybrid 410.218233 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 827.647996, chip thickness 300.000000 and glue 118.736500, giving hybrid 408.911496 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 830.354750, chip thickness 300.000000 and glue 116.842250, giving hybrid 413.512500 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_016_C_H3/1//Data__GPC2233_X_016_C_H3.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_016_C_H3/1//Results__GPC2233_X_016_C_H3.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_016_C_H3/1//Data__GPC2233_X_016_C_H3.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_016_C_H3/1//Results__GPC2233_X_016_C_H3.txt
IService::log INFO Logging status 1111 for component GPC2233_X_016_C_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_016_C_H3/MetrologyHybrid_PROD_X_v0-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed Summary.pdf...
IService::install INFO Installed TotalStackUp.pdf...
IService::install INFO Installed HybridThickness.pdf...
IService::install INFO Installed Positions.pdf...
IService::install INFO Installed Tilt.pdf...
IService::install INFO Installed Data__GPC2233_X_016_C_H3.txt...
IService::install INFO Installed Results__GPC2233_X_016_C_H3.txt...
IService::install INFO Installed Results.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO Installed GPC2233_X_016_C_H3.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//MetrologyHybrid_PROD_X_v0//GPC2233_X_016_C_H4.config
IService::next INFO Scheduling GPC2233-X-16C-H0-5.txt file to run...
IService::next INFO Writing results to /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2233_X_016_C_H4/1/
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002402
Measurement::addPoint ERROR Unknown type ?! Ignoring!
Metadata
Value
Component type
X
Operator
Anthony Affolder
Date
2023-07-24T20:04:08.014+00:00
Program version
MetrologyHybrid_PROD_X_v0/PPB_cloneable_v0_DB102
Instrument
SmartScope Flash 250
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Wirebonding for GPC2233_X_016_C_H3
Wirebonding summaries will be given below
WireBondSvc::run INFO Loading group FAILED_ASIC_BACKEND
WireBondSvc::run INFO Loading group FAILED_HYBRID_TO_PANEL
WireBondSvc::run INFO Loading group REPAIRED_ASIC_BACKEND
WireBondSvc::run INFO Loading group REPAIRED_HYBRID_TO_PANEL
IService::UPLOADDB INFO Working on test code WIRE_BONDING
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 1111 for component GPC2233_X_016_C_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_016_C_H3/HybridBonding_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_WIRE_BONDING.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2233_X_016_C_H3.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//HybridBonding_v1//GPC2233_X_016_C_H4.config
IService::next INFO Scheduling HybridBonding_GPC2233_X_016_C_H4.json file to run...
IService::next INFO Writing results to /home/data/output//HybridBonding_v1//GPC2233_X_016_C_H4/1/
Metadata
Value
Date
2023-08-10T21:53:56.526+00:00
Operator
NN
Bonder
hk1
Version
v1
Bond number
Type
Comment
Electrical results
Electrical summaries will be given below
ElectricalSvc::getListOfFilesFromDir INFO Scanning for test files GPC2233_X_016_C_H3/20USBHX2001478
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2233_X_016_C_H3_20230814.txt
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2233_X_016_C_H3_RC_7_5.txt
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2233_X_016_C_H3_RC_7_8.txt
ElectricalSvc::getListOfJsonFilesFromDir INFO Scanning for test files GPC2233_X_016_C_H3/20USBHX2001478
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_016_C_H3_20230814_7_3_PEDESTAL_TRIM_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_016_C_H3_20230814_7_4_STROBE_DELAY_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_016_C_H3_20230814_7_5_RESPONSE_CURVE_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_016_C_H3_20230814_7_8_RESPONSE_CURVE_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_016_C_H3_20230814_7_18_NO_PPA.json
ElectricalSvc::read INFO Found 2 results files...
ElectricalSvc::read INFO Analyzing test ResponseCurve for component GPC2233_X_016_C_H3
ElectricalSvc::read INFO Detected 0 dead channels
ElectricalSvc::read INFO Detected 0 stuck channels
ElectricalSvc::read INFO Detected 0 low gain channels
ElectricalSvc::read INFO Detected 0 high gain channels
ElectricalSvc::read INFO Detected 0 low offset channels
ElectricalSvc::read INFO Detected 0 high offset channels
ElectricalSvc::read INFO Detected 2557 unbonded channels
ElectricalSvc::read INFO Detected 0 part bonded channels
ElectricalSvc::read INFO Detected 0 high noise channels
ElectricalSvc::read INFO Detected 0 inefficient channels
ElectricalSvc::load_asic_db INFO Reading ASIC database file /home/data/upload//ElectricalHybrids_PPB_v1//GPC2233_X_016_C_H3_GAIN_TEST.json
IService::UPLOADDB INFO Working on test code PEDESTAL_TRIM_PPA
IService::UPLOADDB INFO Working on test code STROBE_DELAY_PPA
IService::UPLOADDB INFO Working on test code RESPONSE_CURVE_PPA
IService::UPLOADDB INFO Working on test code NO_PPA
IService::log INFO Logging status 1111 for component GPC2233_X_016_C_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_016_C_H3/ElectricalHybrids_PPB_v1-1/
IService::install INFO File already installed: warningLog.txt...
IService::install INFO File already installed: errorLog.txt...
IService::install INFO File already installed: infoLog.txt...
IService::install INFO File already installed: Gain_Channel1D.pdf...
IService::install INFO File already installed: DB_READY_PEDESTAL_TRIM_PPA_GPC2233_X_016_C_H3_20230814_7_3_PEDESTAL_TRIM_PPA.json...
IService::install INFO File already installed: DB_READY_STROBE_DELAY_PPA_GPC2233_X_016_C_H3_20230814_7_4_STROBE_DELAY_PPA.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_PPA_GPC2233_X_016_C_H3_20230814_7_5_RESPONSE_CURVE_PPA.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_PPA_GPC2233_X_016_C_H3_20230814_7_8_RESPONSE_CURVE_PPA.json...
IService::install INFO File already installed: DB_READY_NO_PPA_GPC2233_X_016_C_H3_20230814_7_18_NO_PPA.json...
IService::install INFO File already installed: GPC2233_X_016_C_H3.root...
IService::install INFO File already installed: status.json...
MetaData::readField INFO Reading file /home/data/upload//ElectricalHybrids_PPB_v1//GPC2233_X_016_C_H4.config
IService::next INFO Scheduling Panel48_Aug14 file to run...
IService::next INFO Writing results to /home/data/output//ElectricalHybrids_PPB_v1//GPC2233_X_016_C_H4/1/
ElectricalSvc::load_asic_db WARNING Could not find database ASIC GAIN_TEST results for GPC2233_X_016_C_H3
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002402
Defect
Number of channels (%)
Dead
0
Stuck
0
Low gain
0
High gain
0
Low offset
0
High offset
0
Unbonded
2557
Part bonded
0
High noise
0
Inefficient
0
Figures of gain and noise, and correlations with wafer/hybrid level test results, if they exist.
Electrical results
Electrical summaries will be given below
ElectricalSvc::getListOfFilesFromDir INFO Scanning for test files GPC2233_X_016_C_H3/20USBHX2001478
ElectricalSvc::getListOfJsonFilesFromDir INFO Scanning for test files GPC2233_X_016_C_H3/20USBHX2001478
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_016_C_H3_NO_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_016_C_H3_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_016_C_H3_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2233_X_016_C_H3_STROBE_DELAY_BURNIN.json
ElectricalSvc::read INFO Found 0 results files...
ElectricalSvc::load_asic_db INFO Reading ASIC database file /home/data/upload//BurnInHybrids_PROD_v2//GPC2233_X_016_C_H3_GAIN_TEST.json
IService::UPLOADDB INFO Working on test code PEDESTAL_TRIM_BURNIN
IService::UPLOADDB INFO Working on test code STROBE_DELAY_BURNIN
IService::UPLOADDB INFO Working on test code RESPONSE_CURVE_BURNIN
IService::UPLOADDB INFO Working on test code NO_BURNIN
IService::log INFO Logging status 1111 for component GPC2233_X_016_C_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2233_X_016_C_H3/BurnInHybrids_PROD_v2-1/
IService::install INFO File already installed: warningLog.txt...
IService::install INFO File already installed: errorLog.txt...
IService::install INFO File already installed: infoLog.txt...
IService::install INFO File already installed: DB_READY_PEDESTAL_TRIM_BURNIN_GPC2233_X_016_C_H3_PEDESTAL_TRIM_BURNIN.json...
IService::install INFO File already installed: DB_READY_STROBE_DELAY_BURNIN_GPC2233_X_016_C_H3_STROBE_DELAY_BURNIN.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_BURNIN_GPC2233_X_016_C_H3_RESPONSE_CURVE_BURNIN.json...
IService::install INFO File already installed: DB_READY_NO_BURNIN_GPC2233_X_016_C_H3_NO_BURNIN.json...
IService::install INFO File already installed: GPC2233_X_016_C_H3.root...
IService::install INFO File already installed: status.json...
MetaData::readField INFO Reading file /home/data/upload//BurnInHybrids_PROD_v2//GPC2233_X_016_C_H4.config
IService::next INFO Scheduling BurnIn_48_49_50_51_52_53_Aug14_merged file to run...
IService::next INFO Writing results to /home/data/output//BurnInHybrids_PROD_v2//GPC2233_X_016_C_H4/1/
ElectricalSvc::load_asic_db WARNING Could not find database ASIC GAIN_TEST results for GPC2233_X_016_C_H3
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0002402
Figures of gain and noise, and correlations with wafer/hybrid level test results, if they exist.
