Shown below are results for the glue weight measurements
IService::UPLOADDB INFO Working on test code ASIC_GLUE_WEIGHT
GlueWeightSvc::uploadDB INFO Formatting database test for ASIC_GLUE_WEIGHT
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 1111 for component GPC2238_X_022_A_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2238_X_022_A_H3/GlueWeightHybridASIC_PROD_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...

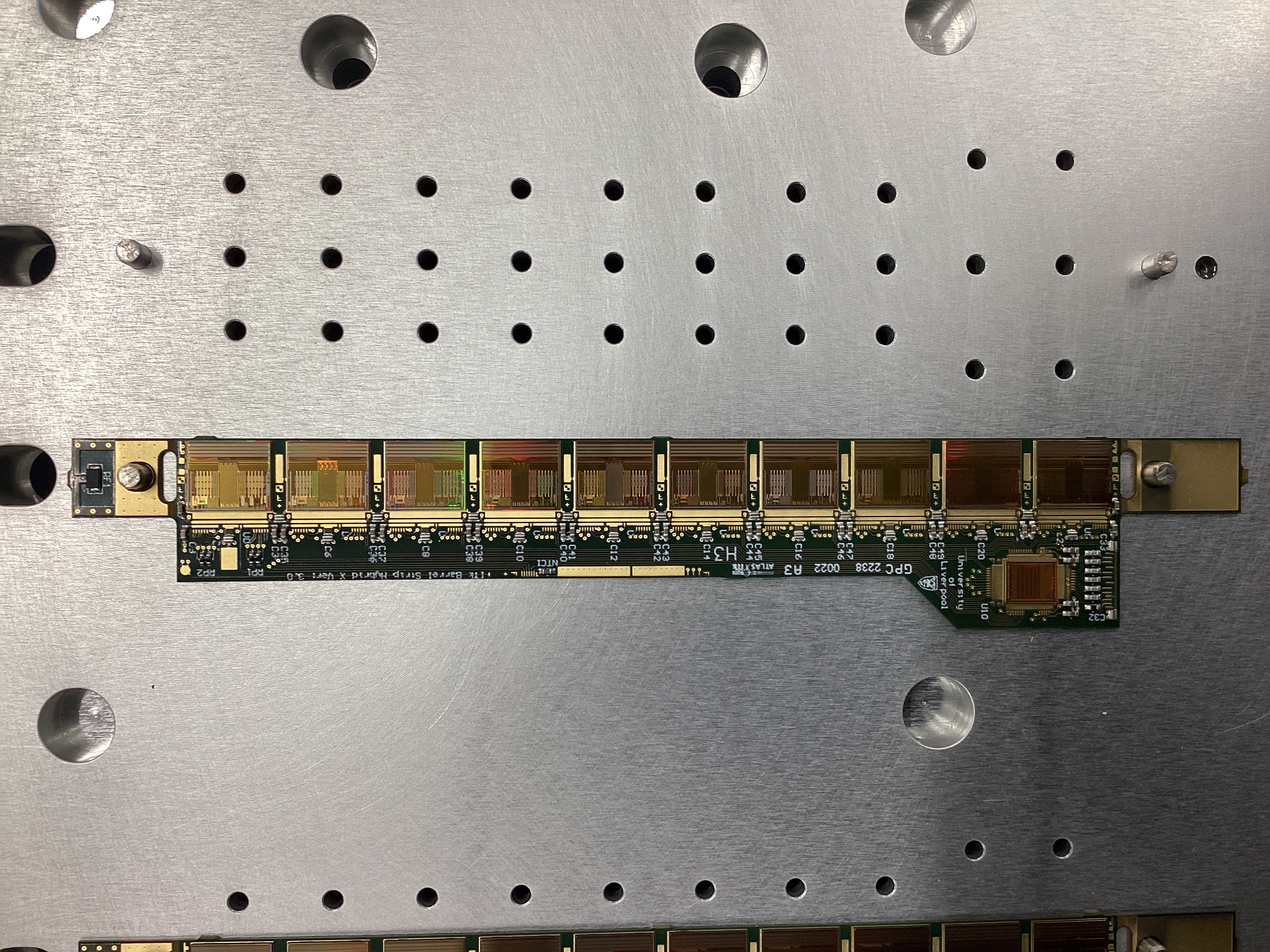

IService::install INFO Installed 20USBHX2001351_image.jpg...
IService::install INFO Installed DB_COMMENTS.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_GLUE_WEIGHT.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2238_X_022_A_H3.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//GlueWeightHybridASIC_PROD_v1//20USBHX2001352.config
IService::next INFO Scheduling Data_20USBHX2001352.json file to run...
IService::next INFO Writing results to /home/data/output//GlueWeightHybridASIC_PROD_v1//GPC2238_X_022_A_H4/1/
Metadata
Value
Component type
Operator
KA, AND
Date
2023-05-31T21:27:32.533+00:00
Program
ASIC_X_PPB
Field
Weight/Volume
Assummed density of glue
1.077
Total volume of ASIC glue [uL]
40.583
Volume per glue dot [nL]
780.439
Weight of glue under ASICs [mg]
43.700
Weights of bare hybrid [g]
2.285
Weights of stuffed hybrid [g]
2.328
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeHybridThickness INFO Total stack up 844.198250, chip thickness 300.000000 and glue 118.202875, giving hybrid 425.995375 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 836.867238, chip thickness 300.000000 and glue 121.394667, giving hybrid 415.472572 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 835.974413, chip thickness 300.000000 and glue 120.870306, giving hybrid 415.104107 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 830.886137, chip thickness 300.000000 and glue 122.790639, giving hybrid 408.095498 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 827.596850, chip thickness 300.000000 and glue 123.692972, giving hybrid 403.903878 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 827.012680, chip thickness 300.000000 and glue 123.364944, giving hybrid 403.647735 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 827.940953, chip thickness 300.000000 and glue 123.746611, giving hybrid 404.194341 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 826.531276, chip thickness 300.000000 and glue 127.610028, giving hybrid 398.921249 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 832.489763, chip thickness 300.000000 and glue 129.158417, giving hybrid 403.331346 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 831.917273, chip thickness 300.000000 and glue 130.928000, giving hybrid 400.989273 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 832.189000, chip thickness 300.000000 and glue 127.317500, giving hybrid 404.871500 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2238_X_022_A_H3/1//Data__GPC2238_X_022_A_H3.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2238_X_022_A_H3/1//Results__GPC2238_X_022_A_H3.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2238_X_022_A_H3/1//Data__GPC2238_X_022_A_H3.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2238_X_022_A_H3/1//Results__GPC2238_X_022_A_H3.txt
IService::log INFO Logging status 1111 for component GPC2238_X_022_A_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2238_X_022_A_H3/MetrologyHybrid_PROD_X_v0-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed Summary.pdf...
IService::install INFO Installed TotalStackUp.pdf...
IService::install INFO Installed HybridThickness.pdf...
IService::install INFO Installed Positions.pdf...
IService::install INFO Installed Tilt.pdf...
IService::install INFO Installed Data__GPC2238_X_022_A_H3.txt...
IService::install INFO Installed Results__GPC2238_X_022_A_H3.txt...
IService::install INFO Installed Results.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO Installed GPC2238_X_022_A_H3.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//MetrologyHybrid_PROD_X_v0//GPC2238_X_022_A_H4.config
IService::next INFO Scheduling GPC2238-X-022A-H0-H1-H2-H3-H4-H6.txt file to run...
IService::next INFO Writing results to /home/data/output//MetrologyHybrid_PROD_X_v0//GPC2238_X_022_A_H4/1/
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0003060
Measurement::addPoint ERROR Unknown type ?! Ignoring!
Metadata
Value
Component type
X
Operator
KA
Date
2023-06-01T00:18:46.196+00:00
Program version
PPB_cloneable_v0_DB102
Instrument
SmartScope Flash 250
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeHybridThickness INFO Total stack up 1001.106000, chip thickness 300.000000 and glue 94.514375, giving hybrid 606.591625 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 999.220059, chip thickness 300.000000 and glue 115.040750, giving hybrid 584.179309 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1004.390727, chip thickness 300.000000 and glue 115.992222, giving hybrid 588.398505 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1003.747149, chip thickness 300.000000 and glue 118.152750, giving hybrid 585.594399 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 1001.283277, chip thickness 300.000000 and glue 117.595333, giving hybrid 583.687944 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 998.371043, chip thickness 300.000000 and glue 112.925722, giving hybrid 585.445321 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 997.606662, chip thickness 300.000000 and glue 115.836889, giving hybrid 581.769773 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 991.539679, chip thickness 300.000000 and glue 119.507417, giving hybrid 572.032262 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 988.558198, chip thickness 300.000000 and glue 121.209361, giving hybrid 567.348836 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 992.106099, chip thickness 300.000000 and glue 122.100750, giving hybrid 570.005349 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 996.137000, chip thickness 300.000000 and glue 121.921000, giving hybrid 574.216000 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2238_X_022_A_H3/1//Data__GPC2238_X_022_A_H3.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2238_X_022_A_H3/1//Results__GPC2238_X_022_A_H3.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2238_X_022_A_H3/1//Data__GPC2238_X_022_A_H3.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2238_X_022_A_H3/1//Results__GPC2238_X_022_A_H3.txt
IService::log INFO Logging status 0111 for component GPC2238_X_022_A_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2238_X_022_A_H3/MetrologyHybrid_PROD_X_v2_thick_interposer-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed Summary.pdf...
IService::install INFO Installed TotalStackUp.pdf...
IService::install INFO Installed HybridThickness.pdf...
IService::install INFO Installed Positions.pdf...
IService::install INFO Installed Tilt.pdf...
IService::install INFO Installed Data__GPC2238_X_022_A_H3.txt...
IService::install INFO Installed Results__GPC2238_X_022_A_H3.txt...
IService::install INFO Installed Results.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO Installed GPC2238_X_022_A_H3.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name HybridToSensorMetrology_v2a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPA_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_wuerth_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0003060
✔ Component is at UCSC. OK to upload
✔ Service has no required stages or transformations. Allowing for upload, but careful! OK to upload
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Wirebonding for GPC2238_X_022_A_H3
Wirebonding summaries will be given below
WireBondSvc::run INFO Loading group FAILED_ASIC_BACKEND
WireBondSvc::run INFO Loading group FAILED_HYBRID_TO_PANEL
WireBondSvc::run INFO Loading group REPAIRED_ASIC_BACKEND
WireBondSvc::run INFO Loading group REPAIRED_HYBRID_TO_PANEL
IService::UPLOADDB INFO Working on test code WIRE_BONDING
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 1111 for component GPC2238_X_022_A_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2238_X_022_A_H3/HybridBonding_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_WIRE_BONDING.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2238_X_022_A_H3.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//HybridBonding_v1//GPC2238_X_022_A_H4.config
IService::next INFO Scheduling HybridBonding_GPC2238_X_022_A_H4.json file to run...
IService::next INFO Writing results to /home/data/output//HybridBonding_v1//GPC2238_X_022_A_H4/1/
Metadata
Value
Date
2023-06-05T19:27:21.955+00:00
Operator
KA
Bonder
hk1
Version
v1
Bond number
Type
Comment
Electrical results
Electrical summaries will be given below
ElectricalSvc::getListOfFilesFromDir INFO Scanning for test files GPC2238_X_022_A_H3/20USBHX2001351
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2238_X_022_A_H3_20230605.txt
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2238_X_022_A_H3_RC_2_4.txt
ElectricalSvc::getListOfFilesFromDir INFO Found file GPC2238_X_022_A_H3_RC_2_7.txt
ElectricalSvc::getListOfJsonFilesFromDir INFO Scanning for test files GPC2238_X_022_A_H3/20USBHX2001351
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2238_X_022_A_H3_20230605_2_2_PEDESTAL_TRIM_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2238_X_022_A_H3_20230605_2_3_STROBE_DELAY_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2238_X_022_A_H3_20230605_2_4_RESPONSE_CURVE_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2238_X_022_A_H3_20230605_2_7_RESPONSE_CURVE_PPA.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2238_X_022_A_H3_20230605_2_17_NO_PPA.json
ElectricalSvc::read INFO Found 2 results files...
ElectricalSvc::read INFO Analyzing test ResponseCurve for component GPC2238_X_022_A_H3
ElectricalSvc::read INFO Detected 0 dead channels
ElectricalSvc::read INFO Detected 0 stuck channels
ElectricalSvc::read INFO Detected 0 low gain channels
ElectricalSvc::read INFO Detected 0 high gain channels
ElectricalSvc::read INFO Detected 0 low offset channels
ElectricalSvc::read INFO Detected 0 high offset channels
ElectricalSvc::read INFO Detected 2559 unbonded channels
ElectricalSvc::read INFO Detected 0 part bonded channels
ElectricalSvc::read INFO Detected 0 high noise channels
ElectricalSvc::read INFO Detected 0 inefficient channels
ElectricalSvc::load_asic_db INFO Reading ASIC database file /home/data/upload//ElectricalHybrids_PPB_v1//GPC2238_X_022_A_H3_GAIN_TEST.json
IService::UPLOADDB INFO Working on test code PEDESTAL_TRIM_PPA
IService::UPLOADDB INFO Working on test code STROBE_DELAY_PPA
IService::UPLOADDB INFO Working on test code RESPONSE_CURVE_PPA
IService::UPLOADDB INFO Working on test code NO_PPA
IService::log INFO Logging status 1111 for component GPC2238_X_022_A_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2238_X_022_A_H3/ElectricalHybrids_PPB_v1-1/
IService::install INFO File already installed: warningLog.txt...
IService::install INFO File already installed: errorLog.txt...
IService::install INFO File already installed: infoLog.txt...
IService::install INFO File already installed: Gain_Channel1D.pdf...
IService::install INFO File already installed: DB_READY_PEDESTAL_TRIM_PPA_GPC2238_X_022_A_H3_20230605_2_2_PEDESTAL_TRIM_PPA.json...
IService::install INFO File already installed: DB_READY_STROBE_DELAY_PPA_GPC2238_X_022_A_H3_20230605_2_3_STROBE_DELAY_PPA.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_PPA_GPC2238_X_022_A_H3_20230605_2_4_RESPONSE_CURVE_PPA.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_PPA_GPC2238_X_022_A_H3_20230605_2_7_RESPONSE_CURVE_PPA.json...
IService::install INFO File already installed: DB_READY_NO_PPA_GPC2238_X_022_A_H3_20230605_2_17_NO_PPA.json...
IService::install INFO File already installed: GPC2238_X_022_A_H3.root...
IService::install INFO File already installed: status.json...
MetaData::readField INFO Reading file /home/data/upload//ElectricalHybrids_PPB_v1//GPC2238_X_022_A_H4.config
IService::next INFO Scheduling panel31_june5 file to run...
IService::next INFO Writing results to /home/data/output//ElectricalHybrids_PPB_v1//GPC2238_X_022_A_H4/1/
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0003060
Defect
Number of channels (%)
Dead
0
Stuck
0
Low gain
0
High gain
0
Low offset
0
High offset
0
Unbonded
2559
Part bonded
0
High noise
0
Inefficient
0
Figures of gain and noise, and correlations with wafer/hybrid level test results, if they exist.
Electrical results
Electrical summaries will be given below
ElectricalSvc::getListOfFilesFromDir INFO Scanning for test files GPC2238_X_022_A_H3/20USBHX2001351
ElectricalSvc::getListOfJsonFilesFromDir INFO Scanning for test files GPC2238_X_022_A_H3/20USBHX2001351
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2238_X_022_A_H3_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2238_X_022_A_H3_STROBE_DELAY_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2238_X_022_A_H3_NO_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle GPC2238_X_022_A_H3_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::read INFO Found 0 results files...
ElectricalSvc::load_asic_db INFO Reading ASIC database file /home/data/upload//BurnInHybrids_PROD_v2//GPC2238_X_022_A_H3_GAIN_TEST.json
IService::UPLOADDB INFO Working on test code PEDESTAL_TRIM_BURNIN
IService::UPLOADDB INFO Working on test code STROBE_DELAY_BURNIN
IService::UPLOADDB INFO Working on test code RESPONSE_CURVE_BURNIN
IService::UPLOADDB INFO Working on test code NO_BURNIN
IService::log INFO Logging status 1111 for component GPC2238_X_022_A_H3
IService::install INFO Installing output directory to /home/data/modules/GPC2238_X_022_A_H3/BurnInHybrids_PROD_v2-1/
IService::install INFO File already installed: warningLog.txt...
IService::install INFO File already installed: errorLog.txt...
IService::install INFO File already installed: infoLog.txt...
IService::install INFO File already installed: DB_READY_PEDESTAL_TRIM_BURNIN_GPC2238_X_022_A_H3_PEDESTAL_TRIM_BURNIN.json...
IService::install INFO File already installed: DB_READY_STROBE_DELAY_BURNIN_GPC2238_X_022_A_H3_STROBE_DELAY_BURNIN.json...
IService::install INFO File already installed: DB_READY_RESPONSE_CURVE_BURNIN_GPC2238_X_022_A_H3_RESPONSE_CURVE_BURNIN.json...
IService::install INFO File already installed: DB_READY_NO_BURNIN_GPC2238_X_022_A_H3_NO_BURNIN.json...
IService::install INFO File already installed: GPC2238_X_022_A_H3.root...
IService::install INFO File already installed: status.json...
MetaData::readField INFO Reading file /home/data/upload//BurnInHybrids_PROD_v2//GPC2238_X_022_A_H4.config
IService::next INFO Scheduling BurnIn_June9_merged file to run...
IService::next INFO Writing results to /home/data/output//BurnInHybrids_PROD_v2//GPC2238_X_022_A_H4/1/
ElectricalSvc::load_asic_db WARNING Could not find database ASIC GAIN_TEST results for GPC2238_X_022_A_H3
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0003060
Figures of gain and noise, and correlations with wafer/hybrid level test results, if they exist.
