Basic Information for GPC2328_X_014_B_H4
Brief description of DB components associated to this Hybrid Assembly and associated tests
Shown below are results for the glue weight measurements
IService::UPLOADDB INFO Working on test code ASIC_GLUE_WEIGHT
GlueWeightSvc::uploadDB INFO Formatting database test for ASIC_GLUE_WEIGHT
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 0111 for component GPC2328_X_014_B_H4
IService::install INFO Installing output directory to /home/data/modules/GPC2328_X_014_B_H4/GlueWeightHybridASIC_PROD_v2-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed 20USBHX2002922_image.jpg...
IService::install INFO Installed DB_COMMENTS.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_GLUE_WEIGHT.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2328_X_014_B_H4.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name GlueWeightModule_LS_PPA ignored through users request!
TopControl::monitor INFO Service with algoirthm name GlueWeightModule_SS_PPA ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPullTest ignored through users request!
TopControl::monitor INFO Service with algoirthm name PullTestCicorelCard ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridFlexArray_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name Powerboards_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_Wafer_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HCC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorBondingQC_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_Before_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_After_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name PhotoUpload ignored through users request!
TopControl::monitor INFO Service with algoirthm name PictureModule ignored through users request!
TopControl::monitor INFO Service with algoirthm name GeneralPictures ignored through users request!
TopControl::monitor INFO Service with algoirthm name PreHVTabIV ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PreTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name Module_postHVTabIV_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PostTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalIV ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_Module_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_AMACIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SixWayJig_Y_slots ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology_v7 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_Y_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10-beta ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridToSensorMetrology_v2a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPA_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_wuerth_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!

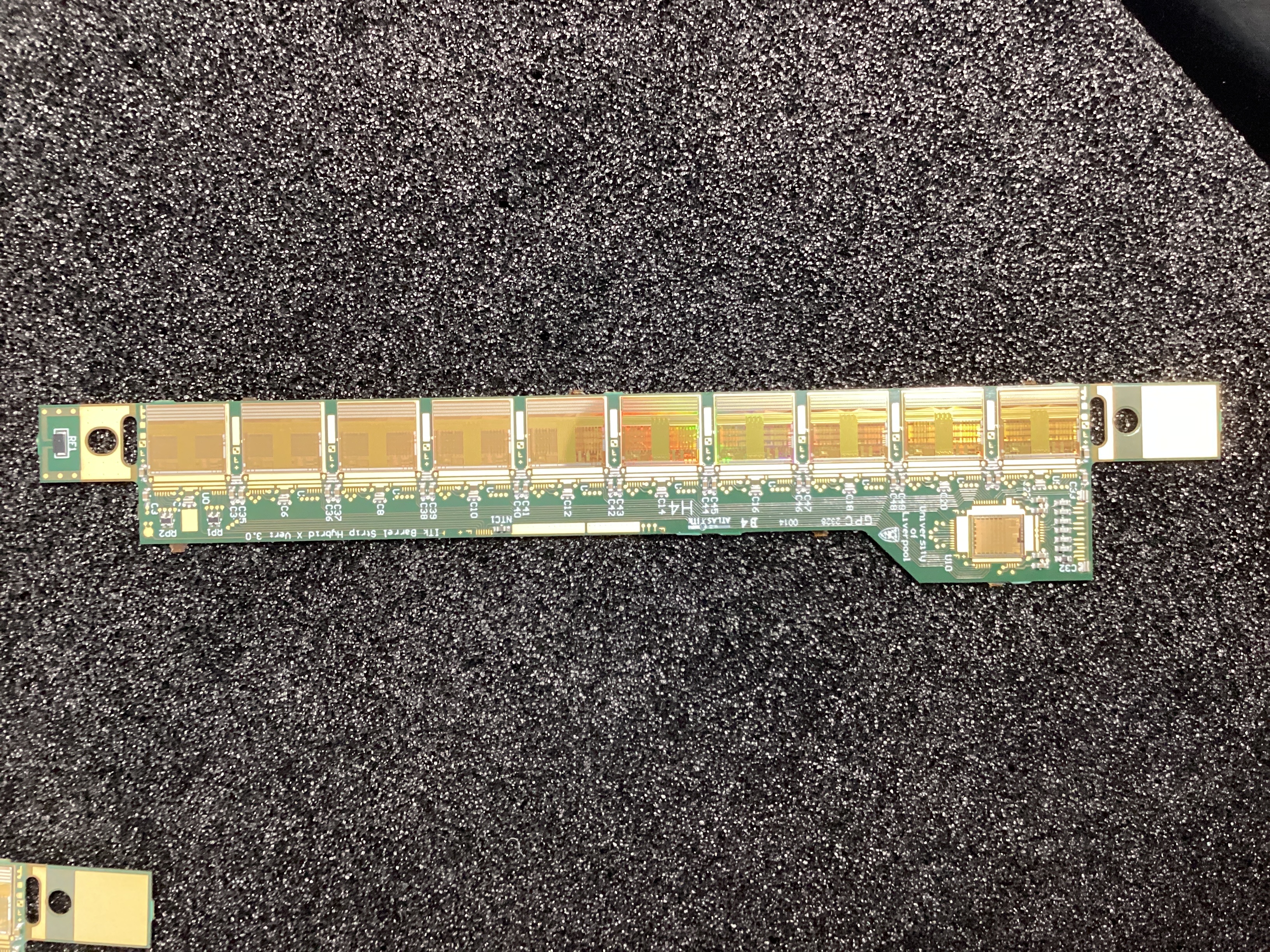

HCC shifted; metrology to confirm
Metadata
Value
Component type
Operator
KA
Date
2025-06-27T23:29:17.505+00:00
Program
ASIC-X.SRC
Field
Weight/Volume
Assummed density of glue
1.077
Total volume of ASIC glue [uL]
41.233
Volume per glue dot [nL]
792.940
Weight of glue under ASICs [mg]
44.400
Weights of bare hybrid [g]
2.899
Weights of stuffed hybrid [g]
2.944
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_0] Height in z : 455.261250 +/- 3.105000 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_0] Height in z : 40.463875 +/- 8.999702 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 414.797375
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 114.797375 +/- 10.753402 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 415.797375 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_1] Height in z : 446.547750 +/- 1.739750 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_1] Height in z : 41.062556 +/- 7.203667 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 405.485194
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 105.485194 +/- 8.939773 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 406.485194 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_2] Height in z : 440.751250 +/- 3.222250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_2] Height in z : 41.140667 +/- 9.768167 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 399.610583
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 99.610583 +/- 11.436782 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 400.610583 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_3] Height in z : 435.276000 +/- 3.627750 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_3] Height in z : 41.352556 +/- 8.527167 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 393.923444
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 93.923444 +/- 10.529632 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 394.923444 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_4] Height in z : 432.754250 +/- 2.259500 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_4] Height in z : 45.957444 +/- 7.109333 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 386.796806
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 86.796806 +/- 8.980421 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 387.796806 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_5] Height in z : 429.457000 +/- 1.757250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_5] Height in z : 42.611000 +/- 9.277833 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 386.846000
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 86.846000 +/- 10.684855 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 387.846000 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_6] Height in z : 427.868250 +/- 1.932250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_6] Height in z : 37.455000 +/- 8.382500 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 390.413250
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 90.413250 +/- 9.949869 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 391.413250 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_7] Height in z : 425.366500 +/- 2.490500 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_7] Height in z : 38.126222 +/- 11.127667 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 387.240278
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 87.240278 +/- 12.451006 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 388.240278 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_8] Height in z : 424.291250 +/- 2.725750 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_8] Height in z : 37.226889 +/- 10.782500 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 387.064361
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 87.064361 +/- 12.193934 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 388.064361 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_9] Height in z : 428.625500 +/- 2.766250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_9] Height in z : 35.912250 +/- 11.962125 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 392.713250
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 92.713250 +/- 13.256869 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 393.713250 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [HCC_X_0] Height in z : 434.533750 +/- 1.498250 um
MetrologySvc::analyzeGlueHeights INFO ----> [HCC_X_0] Height in z : 46.665375 +/- 4.480759 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 387.868375
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 87.868375 +/- 6.879095 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 388.868375 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeHybridThickness INFO Total stack up 1002.918500, chip thickness 300.000000 and glue 114.797375, giving hybrid 588.121125 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 996.921796, chip thickness 300.000000 and glue 105.485194, giving hybrid 591.436602 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 992.766710, chip thickness 300.000000 and glue 99.610583, giving hybrid 593.156127 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 988.688073, chip thickness 300.000000 and glue 93.923444, giving hybrid 594.764628 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 988.195799, chip thickness 300.000000 and glue 86.796806, giving hybrid 601.398994 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 986.589759, chip thickness 300.000000 and glue 86.846000, giving hybrid 599.743759 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 985.126800, chip thickness 300.000000 and glue 90.413250, giving hybrid 594.713550 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 981.131203, chip thickness 300.000000 and glue 87.240278, giving hybrid 593.890926 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 978.342961, chip thickness 300.000000 and glue 87.064361, giving hybrid 591.278600 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 982.257713, chip thickness 300.000000 and glue 92.713250, giving hybrid 589.544463 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 984.986000, chip thickness 300.000000 and glue 87.868375, giving hybrid 597.117625 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2328_X_014_B_H4/1//Data__GPC2328_X_014_B_H4.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2328_X_014_B_H4/1//Results__GPC2328_X_014_B_H4.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2328_X_014_B_H4/1//Data__GPC2328_X_014_B_H4.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2328_X_014_B_H4/1//Results__GPC2328_X_014_B_H4.txt
IService::log INFO Logging status 0111 for component GPC2328_X_014_B_H4
IService::install INFO Installing output directory to /home/data/modules/GPC2328_X_014_B_H4/MetrologyHybrid_PROD_X_v2_thick_interposer-1/
IService::install INFO File already installed: warningLog.txt...
IService::install INFO File already installed: errorLog.txt...
IService::install INFO File already installed: infoLog.txt...
IService::install INFO File already installed: Summary.pdf...
IService::install INFO File already installed: TotalStackUp.pdf...
IService::install INFO File already installed: HybridThickness.pdf...
IService::install INFO File already installed: Positions.pdf...
IService::install INFO File already installed: Tilt.pdf...
IService::install INFO File already installed: Data__GPC2328_X_014_B_H4.txt...
IService::install INFO File already installed: Results__GPC2328_X_014_B_H4.txt...
IService::install INFO File already installed: Results.json...
IService::install INFO File already installed: DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO File already installed: GPC2328_X_014_B_H4.root...
IService::install INFO File already installed: status.json...
TopControl::monitor INFO Service with algoirthm name HybridToSensorMetrology_v2a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPA_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_wuerth_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2002755_20250611_8_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2002755_20250611_8_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2002755_20250611_8_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2002755_20250611_8_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2002755_20250611_8_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2002756_20250611_8_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2002756_20250611_8_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2002756_20250611_8_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2002756_20250611_8_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2002756_20250611_8_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2002793_20250630_40_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2002793_20250630_40_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2002793_20250630_40_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2002793_20250630_40_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2002793_20250630_40_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2002922_20250701_14_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2002922_20250701_14_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2002922_20250701_14_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2002922_20250701_14_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2002922_20250701_14_NO_BURNIN.json
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0004433
MetrologySvc::PassFail WARNING Chip position (x,y) = (-25.710000,-218.923000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-50.567000,-216.228000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 2 objects outside tolerence!!
IService::PASSFAIL WARNING Service GPC2328_X_014_B_H4 has failed criteria!
MetrologySvc::PassFail WARNING Identified a total of 1 objects outside tolerence!!
MetrologySvc::PassFail WARNING Identified a total of 1 objects outside tolerence!!
MetrologySvc::PassFail WARNING Identified a total of 1 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-25.710000,-218.923000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-50.567000,-216.228000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 2 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-25.710000,-218.923000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-50.567000,-216.228000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 2 objects outside tolerence!!
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Wirebonding for GPC2328_X_014_B_H4
Wirebonding summaries will be given below
WireBondSvc::run INFO Loading group FAILED_ASIC_BACKEND
WireBondSvc::run INFO Loading group FAILED_HYBRID_TO_PANEL
WireBondSvc::run INFO Loading group REPAIRED_ASIC_BACKEND
WireBondSvc::run INFO Loading group REPAIRED_HYBRID_TO_PANEL
IService::UPLOADDB INFO Working on test code WIRE_BONDING
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 0111 for component GPC2328_X_014_B_H4
IService::install INFO Installing output directory to /home/data/modules/GPC2328_X_014_B_H4/HybridBonding_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_WIRE_BONDING.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2328_X_014_B_H4.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//HybridBonding_v1//GPC2328_X_014_B_H5-1.config
IService::next INFO Scheduling HybridBonding_GPC2328_X_014_B_H5-1.json file to run...
IService::next INFO Writing results to /home/data/output//HybridBonding_v1//GPC2328_X_014_B_H5/1/
Metadata
Value
Date
2025-07-01T22:03:13.083+00:00
Operator
LM
Bonder
hk1
Version
v1
Bond number
Type
Comment
Electrical results
Electrical summaries will be given below
ElectricalSvc::getListOfFilesFromDir INFO Scanning for test files GPC2328_X_014_B_H4/20USBHX2002922
ElectricalSvc::getListOfJsonFilesFromDir INFO Scanning for test files GPC2328_X_014_B_H4/20USBHX2002922
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2002922_20250701_14_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2002922_20250701_14_STROBE_DELAY_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2002922_20250701_14_3PG_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2002922_20250701_14_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2002922_20250701_14_NO_BURNIN.json
ElectricalSvc::read INFO Found 0 results files...
ElectricalSvc::load_asic_db INFO Reading ASIC database file /home/data/upload//BurnInHybrids_PROD_v2//GPC2328_X_014_B_H4_GAIN_TEST.json
IService::UPLOADDB INFO Working on test code PEDESTAL_TRIM_BURNIN
IService::UPLOADDB INFO Working on test code STROBE_DELAY_BURNIN
IService::UPLOADDB INFO Working on test code RESPONSE_CURVE_BURNIN
IService::UPLOADDB INFO Working on test code NO_BURNIN
IService::log INFO Logging status 0111 for component GPC2328_X_014_B_H4
IService::install INFO Installing output directory to /home/data/modules/GPC2328_X_014_B_H4/BurnInHybrids_PROD_v2-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2002922_20250701_14_PEDESTAL_TRIM_BURNIN.json...
IService::install INFO Installed DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2002922_20250701_14_STROBE_DELAY_BURNIN.json...
IService::install INFO Installed DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2002922_20250701_14_3PG_BURNIN.json...
IService::install INFO Installed DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2002922_20250701_14_RESPONSE_CURVE_BURNIN.json...
IService::install INFO Installed DB_READY_NO_BURNIN_SN20USBHX2002922_20250701_14_NO_BURNIN.json...
IService::install INFO Installed GPC2328_X_014_B_H4.root...
IService::install INFO Installed status.json...
MetaData::readField INFO Reading file /home/data/upload//BurnInHybrids_PROD_v2//GPC2328_X_014_B_H5-1.config
IService::next INFO Scheduling Burnin_Panel_43_27 file to run...
IService::next INFO Writing results to /home/data/output//BurnInHybrids_PROD_v2//GPC2328_X_014_B_H5/1/
ElectricalSvc::load_asic_db WARNING Could not find database ASIC GAIN_TEST results for GPC2328_X_014_B_H4
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0004433
Figures of gain and noise, and correlations with wafer/hybrid level test results, if they exist.
