Basic Information for GPC2337_X_011_C_H4
Brief description of DB components associated to this Hybrid Assembly and associated tests
Shown below are results for the glue weight measurements
IService::UPLOADDB INFO Working on test code ASIC_GLUE_WEIGHT
GlueWeightSvc::uploadDB INFO Formatting database test for ASIC_GLUE_WEIGHT
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 0111 for component GPC2337_X_011_C_H4
IService::install INFO Installing output directory to /home/data/modules/GPC2337_X_011_C_H4/GlueWeightHybridASIC_PROD_v2-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...

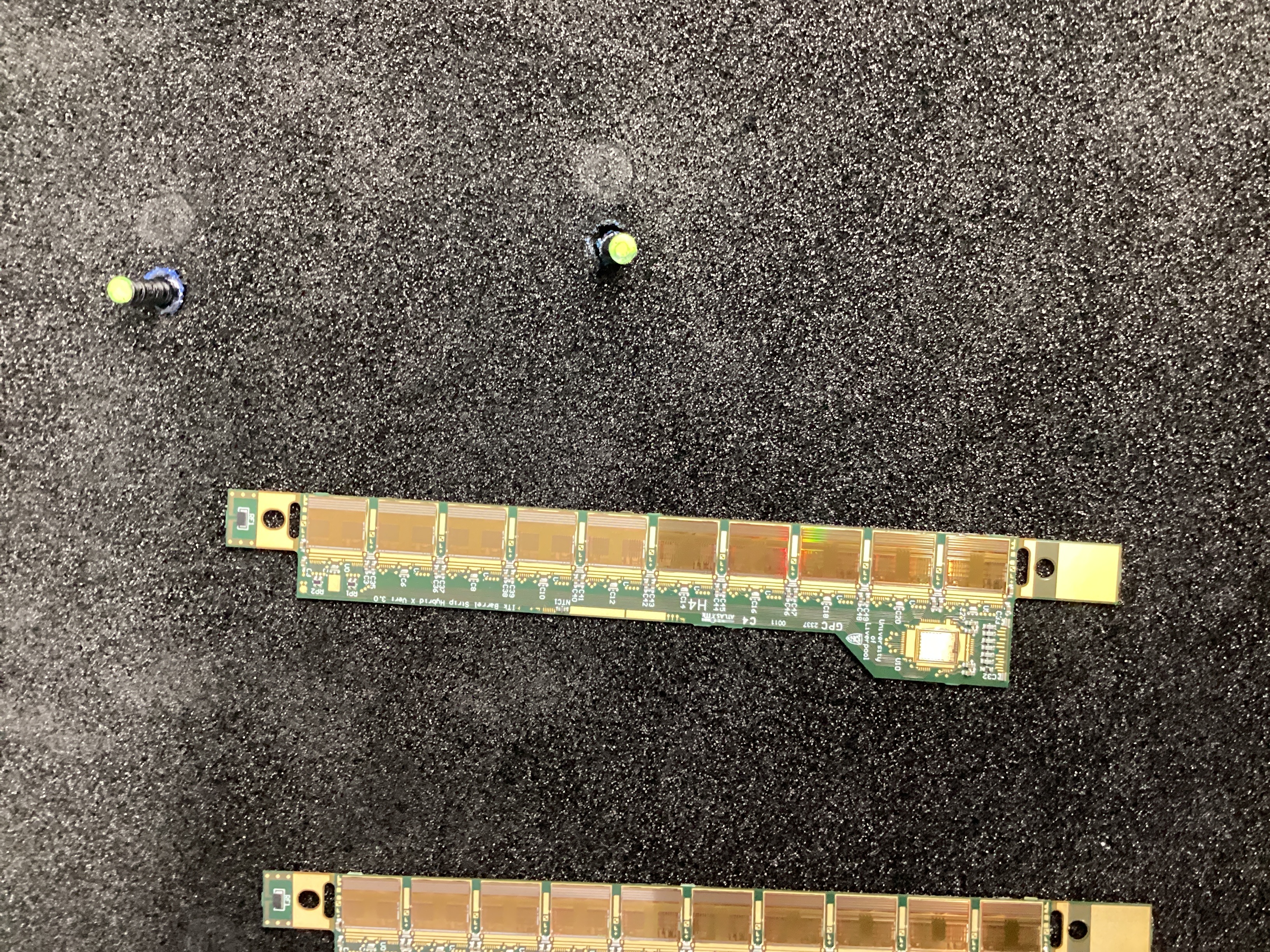

IService::install INFO Installed 20USBHX2003778_image.jpg...
IService::install INFO Installed DB_COMMENTS.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_GLUE_WEIGHT.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2337_X_011_C_H4.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name GlueWeightModule_LS_PPA ignored through users request!
TopControl::monitor INFO Service with algoirthm name GlueWeightModule_SS_PPA ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPullTest ignored through users request!
TopControl::monitor INFO Service with algoirthm name PullTestCicorelCard ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridFlexArray_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name Powerboards_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_Wafer_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HCC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorBondingQC_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_Before_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_After_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name PhotoUpload ignored through users request!
TopControl::monitor INFO Service with algoirthm name PictureModule ignored through users request!
TopControl::monitor INFO Service with algoirthm name GeneralPictures ignored through users request!
TopControl::monitor INFO Service with algoirthm name PreHVTabIV ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PreTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name Module_postHVTabIV_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PostTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalIV ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_Module_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_AMACIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SixWayJig_Y_slots ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology_v7 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_Y_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10-beta ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridToSensorMetrology_v2a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPA_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_wuerth_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
Metadata
Value
Component type
Operator
QFP, LM
Date
2025-09-23T21:01:59.149+00:00
Program
ASIC_X_PPB.SRC
Field
Weight/Volume
Assummed density of glue
1.077
Total volume of ASIC glue [uL]
40.490
Volume per glue dot [nL]
778.653
Weight of glue under ASICs [mg]
43.600
Weights of bare hybrid [g]
3.179
Weights of stuffed hybrid [g]
3.222
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_0] Height in z : 411.103250 +/- 2.057000 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_0] Height in z : 37.991125 +/- 3.449974 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 373.112125
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 73.112125 +/- 6.413546 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 374.112125 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_1] Height in z : 403.011000 +/- 0.722750 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_1] Height in z : 42.814889 +/- 3.977000 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 360.196111
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 60.196111 +/- 6.429533 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 361.196111 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_2] Height in z : 400.095750 +/- 1.639250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_2] Height in z : 39.809889 +/- 6.234833 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 360.285861
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 60.285861 +/- 8.158449 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 361.285861 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_3] Height in z : 396.094500 +/- 2.215750 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_3] Height in z : 37.839333 +/- 6.726000 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 358.255167
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 58.255167 +/- 8.668831 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 359.255167 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_4] Height in z : 394.176250 +/- 2.020750 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_4] Height in z : 42.741333 +/- 7.280333 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 351.434917
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 51.434917 +/- 9.060170 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 352.434917 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_5] Height in z : 392.606250 +/- 1.779500 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_5] Height in z : 42.930556 +/- 9.784000 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 349.675694
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 49.675694 +/- 11.130736 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 350.675694 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_6] Height in z : 392.913500 +/- 1.562750 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_6] Height in z : 40.526222 +/- 10.337667 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 352.387278
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 52.387278 +/- 11.589199 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 353.387278 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_7] Height in z : 392.284250 +/- 2.013000 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_7] Height in z : 33.182778 +/- 8.867833 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 359.101472
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 59.101472 +/- 10.377410 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 360.101472 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_8] Height in z : 394.789250 +/- 2.909000 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_8] Height in z : 42.233889 +/- 7.860833 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 352.555361
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 52.555361 +/- 9.759866 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 353.555361 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_9] Height in z : 399.906000 +/- 2.141250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_9] Height in z : 32.365125 +/- 15.420231 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 367.540875
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 67.540875 +/- 16.351406 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 368.540875 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [HCC_X_0] Height in z : 401.556250 +/- 1.291750 um
MetrologySvc::analyzeGlueHeights INFO ----> [HCC_X_0] Height in z : 36.469750 +/- 6.064325 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 365.086500
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 65.086500 +/- 7.965215 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 366.086500 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeHybridThickness INFO Total stack up 1006.456500, chip thickness 300.000000 and glue 73.112125, giving hybrid 633.344375 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 999.089421, chip thickness 300.000000 and glue 60.196111, giving hybrid 638.893310 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 996.229084, chip thickness 300.000000 and glue 60.285861, giving hybrid 635.943223 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 991.986854, chip thickness 300.000000 and glue 58.255167, giving hybrid 633.731687 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 990.425743, chip thickness 300.000000 and glue 51.434917, giving hybrid 638.990827 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 988.928731, chip thickness 300.000000 and glue 49.675694, giving hybrid 639.253037 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 987.737702, chip thickness 300.000000 and glue 52.387278, giving hybrid 635.350424 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 983.988477, chip thickness 300.000000 and glue 59.101472, giving hybrid 624.887004 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 983.167201, chip thickness 300.000000 and glue 52.555361, giving hybrid 630.611840 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 986.227398, chip thickness 300.000000 and glue 67.540875, giving hybrid 618.686523 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 987.085500, chip thickness 300.000000 and glue 65.086500, giving hybrid 621.999000 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2337_X_011_C_H4/2//Data__GPC2337_X_011_C_H4.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2337_X_011_C_H4/2//Results__GPC2337_X_011_C_H4.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2337_X_011_C_H4/2//Data__GPC2337_X_011_C_H4.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_thick_interposer//GPC2337_X_011_C_H4/2//Results__GPC2337_X_011_C_H4.txt
IService::log INFO Logging status 0111 for component GPC2337_X_011_C_H4
IService::install INFO Installing output directory to /home/data/modules/GPC2337_X_011_C_H4/MetrologyHybrid_PROD_X_v2_thick_interposer-2/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed Summary.pdf...
IService::install INFO Installed TotalStackUp.pdf...
IService::install INFO Installed HybridThickness.pdf...
IService::install INFO Installed Positions.pdf...
IService::install INFO Installed Tilt.pdf...
IService::install INFO Installed Data__GPC2337_X_011_C_H4.txt...
IService::install INFO Installed Results__GPC2337_X_011_C_H4.txt...
IService::install INFO Installed Results.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO Installed GPC2337_X_011_C_H4.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name HybridToSensorMetrology_v2a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPA_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_wuerth_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0005427
MetrologySvc::PassFail WARNING Chip position (x,y) = (-16.976000,225.125000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-33.097000,-287.878000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-231.216000,-14.398000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-274.744000,-73.861000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 6 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-16.976000,225.125000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-33.097000,-287.878000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-231.216000,-14.398000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-274.744000,-73.861000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 6 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-16.976000,225.125000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-33.097000,-287.878000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-231.216000,-14.398000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-274.744000,-73.861000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 6 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-304.909000,-79.951000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-418.531000,207.075000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-317.092000,-52.402000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.699000,389.472000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-324.906000,-56.251000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-25.179000,388.917000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-332.327000,-58.664000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.632000,394.568000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-325.168000,-65.015000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18.305000,390.612000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-323.450000,-67.905000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-37.524000,397.797000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.384000,-60.009000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-14.135000,393.574000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-338.776000,-66.963000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-43.134000,399.760000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-328.983000,-64.157000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-30.975000,395.829000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-331.935000,-69.879000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (254.606000,-66.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-22.267000,216.975000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-25.965000,-415.562000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-245.494000,-8.029000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-276.630000,-77.236000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-304.909000,-79.951000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-418.531000,207.075000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-317.092000,-52.402000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.699000,389.472000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-324.906000,-56.251000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-25.179000,388.917000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-332.327000,-58.664000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.632000,394.568000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-325.168000,-65.015000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18.305000,390.612000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-323.450000,-67.905000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-37.524000,397.797000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.384000,-60.009000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-14.135000,393.574000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-338.776000,-66.963000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-43.134000,399.760000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-328.983000,-64.157000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-30.975000,395.829000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-331.935000,-69.879000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (254.606000,-66.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-22.267000,216.975000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-25.965000,-415.562000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-245.494000,-8.029000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-276.630000,-77.236000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-304.909000,-79.951000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-418.531000,207.075000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-317.092000,-52.402000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.699000,389.472000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-324.906000,-56.251000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-25.179000,388.917000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-332.327000,-58.664000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.632000,394.568000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-325.168000,-65.015000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18.305000,390.612000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-323.450000,-67.905000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-37.524000,397.797000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.384000,-60.009000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-14.135000,393.574000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-338.776000,-66.963000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-43.134000,399.760000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-328.983000,-64.157000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-30.975000,395.829000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-331.935000,-69.879000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (254.606000,-66.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-22.267000,216.975000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-25.965000,-415.562000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-245.494000,-8.029000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-276.630000,-77.236000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-307.823000,-77.405000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-16.238000,383.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-34.181000,392.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-346.247000,-61.694000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-29.953000,388.671000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-340.344000,-51.947000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (241.679000,-74.718000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-344.327000,-74.100000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (243.066000,-57.688000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-355.591000,-67.339000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (232.562000,-50.921000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-348.771000,-66.774000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (233.118000,-63.896000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-347.434000,-68.924000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-31.616000,379.179000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-340.378000,-71.012000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-34.229000,376.908000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-348.167000,-70.545000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (218.754000,-80.872000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-27.153000,363.576000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-31.626000,-279.614000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (30.545000,-276.584000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-281.263000,-50.900000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 43 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-307.823000,-77.405000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-16.238000,383.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-34.181000,392.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-346.247000,-61.694000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-29.953000,388.671000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-340.344000,-51.947000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (241.679000,-74.718000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-344.327000,-74.100000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (243.066000,-57.688000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-355.591000,-67.339000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (232.562000,-50.921000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-348.771000,-66.774000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (233.118000,-63.896000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-347.434000,-68.924000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-31.616000,379.179000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-340.378000,-71.012000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-34.229000,376.908000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-348.167000,-70.545000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (218.754000,-80.872000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-27.153000,363.576000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-31.626000,-279.614000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (30.545000,-276.584000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-281.263000,-50.900000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 43 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-307.823000,-77.405000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-16.238000,383.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-34.181000,392.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-346.247000,-61.694000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-29.953000,388.671000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-340.344000,-51.947000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (241.679000,-74.718000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-344.327000,-74.100000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (243.066000,-57.688000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-355.591000,-67.339000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (232.562000,-50.921000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-348.771000,-66.774000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (233.118000,-63.896000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-347.434000,-68.924000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-31.616000,379.179000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-340.378000,-71.012000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-34.229000,376.908000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-348.167000,-70.545000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (218.754000,-80.872000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-27.153000,363.576000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-31.626000,-279.614000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (30.545000,-276.584000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-281.263000,-50.900000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 43 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-309.966000,-74.578000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-410.678000,-335.688000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-26.760000,392.112000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-344.489000,-64.565000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-31.645000,393.820000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-98.555000,-293.761000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (255.735000,-66.797000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-260.349000,-305.905000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-23.869000,393.152000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-40.308000,-321.081000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (239.866000,-68.715000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-335.662000,-76.989000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (246.163000,-71.875000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-333.647000,-80.587000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (245.799000,-78.111000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.306000,-78.807000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18.927000,373.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-338.933000,-77.029000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (232.864000,-75.566000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-21.027000,359.158000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.320000,-393.866000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (46.223000,-276.491000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-282.293000,-68.155000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 38 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-309.966000,-74.578000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-410.678000,-335.688000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-26.760000,392.112000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-344.489000,-64.565000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-31.645000,393.820000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-98.555000,-293.761000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (255.735000,-66.797000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-260.349000,-305.905000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-23.869000,393.152000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-40.308000,-321.081000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (239.866000,-68.715000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-335.662000,-76.989000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (246.163000,-71.875000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-333.647000,-80.587000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (245.799000,-78.111000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.306000,-78.807000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18.927000,373.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-338.933000,-77.029000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (232.864000,-75.566000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-21.027000,359.158000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.320000,-393.866000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (46.223000,-276.491000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-282.293000,-68.155000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 38 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-309.966000,-74.578000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-410.678000,-335.688000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-26.760000,392.112000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-344.489000,-64.565000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-31.645000,393.820000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-98.555000,-293.761000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (255.735000,-66.797000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-260.349000,-305.905000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-23.869000,393.152000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-40.308000,-321.081000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (239.866000,-68.715000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-335.662000,-76.989000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (246.163000,-71.875000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-333.647000,-80.587000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (245.799000,-78.111000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.306000,-78.807000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18.927000,373.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-338.933000,-77.029000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (232.864000,-75.566000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-21.027000,359.158000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.320000,-393.866000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (46.223000,-276.491000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-282.293000,-68.155000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 38 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-331.844000,-30.975000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-412.857000,-268.760000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.884000,437.550000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-322.313000,-43.639000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-10.802000,-265.168000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-345.873000,-40.024000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-43.186000,421.391000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-329.598000,-48.536000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (254.858000,-31.080000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-340.484000,-46.915000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (149.665000,-275.005000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-341.359000,-71.782000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-40.195000,409.180000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-327.593000,-67.220000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-36.828000,410.473000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-334.135000,-75.216000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (248.597000,-62.002000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-345.303000,-71.096000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (229.269000,-57.698000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-49.919000,251.973000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (238.758000,26.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-270.451000,8.800000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.064000,-52.446000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 41 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-331.844000,-30.975000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-412.857000,-268.760000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.884000,437.550000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-322.313000,-43.639000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-10.802000,-265.168000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-345.873000,-40.024000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-43.186000,421.391000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-329.598000,-48.536000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (254.858000,-31.080000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-340.484000,-46.915000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (149.665000,-275.005000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-341.359000,-71.782000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-40.195000,409.180000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-327.593000,-67.220000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-36.828000,410.473000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-334.135000,-75.216000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (248.597000,-62.002000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-345.303000,-71.096000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (229.269000,-57.698000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-49.919000,251.973000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (238.758000,26.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-270.451000,8.800000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.064000,-52.446000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 41 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-331.844000,-30.975000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-412.857000,-268.760000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.884000,437.550000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-322.313000,-43.639000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-10.802000,-265.168000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-345.873000,-40.024000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-43.186000,421.391000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-329.598000,-48.536000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (254.858000,-31.080000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-340.484000,-46.915000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (149.665000,-275.005000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-341.359000,-71.782000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-40.195000,409.180000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-327.593000,-67.220000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-36.828000,410.473000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-334.135000,-75.216000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (248.597000,-62.002000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-345.303000,-71.096000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (229.269000,-57.698000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-49.919000,251.973000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (238.758000,26.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-270.451000,8.800000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.064000,-52.446000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 41 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-327.775000,-93.557000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (254.701000,-83.375000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-46.333000,375.589000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-346.709000,-76.727000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-17.995000,377.213000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-345.342000,-98.648000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (234.493000,-72.381000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-42.379000,383.817000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-350.896000,-67.065000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (233.821000,-69.031000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-349.366000,-62.041000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-34.962000,392.561000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-337.134000,-50.417000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (243.989000,-65.491000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-348.018000,-41.507000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.841000,394.256000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-346.042000,-73.499000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (235.256000,-55.486000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 34 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-327.775000,-93.557000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (254.701000,-83.375000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-46.333000,375.589000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-346.709000,-76.727000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-17.995000,377.213000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-345.342000,-98.648000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (234.493000,-72.381000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-42.379000,383.817000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-350.896000,-67.065000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (233.821000,-69.031000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-349.366000,-62.041000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-34.962000,392.561000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-337.134000,-50.417000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (243.989000,-65.491000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-348.018000,-41.507000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.841000,394.256000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-346.042000,-73.499000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (235.256000,-55.486000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 34 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-327.775000,-93.557000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (254.701000,-83.375000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-46.333000,375.589000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-346.709000,-76.727000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-17.995000,377.213000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-345.342000,-98.648000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (234.493000,-72.381000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-42.379000,383.817000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-350.896000,-67.065000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (233.821000,-69.031000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-349.366000,-62.041000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-34.962000,392.561000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-337.134000,-50.417000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (243.989000,-65.491000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-348.018000,-41.507000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-32.841000,394.256000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-346.042000,-73.499000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (235.256000,-55.486000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 34 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-329.710000,-71.058000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-363.865000,-404.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-19.280000,390.984000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-335.146000,-86.098000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-37.690000,380.918000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.974000,-89.664000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (258.240000,-76.932000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-341.881000,-94.745000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-33.401000,374.240000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-342.381000,-89.282000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (244.181000,-86.401000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-364.997000,-123.067000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-51.726000,468.014000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-333.959000,-123.768000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (251.159000,-100.653000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-335.765000,-104.835000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (247.545000,-95.123000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 33 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-329.710000,-71.058000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-363.865000,-404.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-19.280000,390.984000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-335.146000,-86.098000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-37.690000,380.918000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.974000,-89.664000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (258.240000,-76.932000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-341.881000,-94.745000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-33.401000,374.240000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-342.381000,-89.282000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (244.181000,-86.401000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-364.997000,-123.067000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-51.726000,468.014000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-333.959000,-123.768000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (251.159000,-100.653000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-335.765000,-104.835000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (247.545000,-95.123000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 33 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-329.710000,-71.058000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-363.865000,-404.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-19.280000,390.984000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-335.146000,-86.098000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-37.690000,380.918000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.974000,-89.664000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (258.240000,-76.932000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-341.881000,-94.745000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-33.401000,374.240000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-342.381000,-89.282000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (244.181000,-86.401000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-364.997000,-123.067000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-51.726000,468.014000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-333.959000,-123.768000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (251.159000,-100.653000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-335.765000,-104.835000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (247.545000,-95.123000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 33 objects outside tolerence!!
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Wirebonding for GPC2337_X_011_C_H4
Wirebonding summaries will be given below
WireBondSvc::run INFO Loading group FAILED_ASIC_BACKEND
WireBondSvc::run INFO Loading group FAILED_HYBRID_TO_PANEL
WireBondSvc::run INFO Loading group REPAIRED_ASIC_BACKEND
WireBondSvc::run INFO Loading group REPAIRED_HYBRID_TO_PANEL
IService::UPLOADDB INFO Working on test code WIRE_BONDING
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 0111 for component GPC2337_X_011_C_H4
IService::install INFO Installing output directory to /home/data/modules/GPC2337_X_011_C_H4/HybridBonding_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_WIRE_BONDING.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2337_X_011_C_H4.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name ModuleBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPullTest ignored through users request!
TopControl::monitor INFO Service with algoirthm name PullTestCicorelCard ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridFlexArray_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name Powerboards_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_Wafer_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HCC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorBondingQC_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_Before_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_After_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name PhotoUpload ignored through users request!
TopControl::monitor INFO Service with algoirthm name PictureModule ignored through users request!
TopControl::monitor INFO Service with algoirthm name GeneralPictures ignored through users request!
TopControl::monitor INFO Service with algoirthm name PreHVTabIV ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PreTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name Module_postHVTabIV_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PostTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalIV ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_Module_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_AMACIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SixWayJig_Y_slots ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology_v7 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_Y_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10-beta ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridToSensorMetrology_v2a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPA_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_wuerth_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-284.237000,20.251000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-416.077000,-200.211000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-2.556000,-231.606000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-57.351000,458.956000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-349.937000,-18.347000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-62.136000,426.924000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-351.289000,-44.574000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (235.650000,-50.197000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-341.375000,-52.341000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (244.495000,-71.875000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-365.944000,-61.146000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (208.411000,-40.085000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-353.495000,-74.947000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (230.514000,-54.002000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-336.703000,-93.288000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-19.747000,375.008000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-338.522000,-103.215000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-38.669000,475.402000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-64.958000,-358.881000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-68.680000,472.599000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (5.647000,214.368000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (276.553000,-23.845000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.485000,-10.419000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-369.234000,-72.136000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-284.237000,20.251000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-416.077000,-200.211000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-2.556000,-231.606000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-57.351000,458.956000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-349.937000,-18.347000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-62.136000,426.924000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-351.289000,-44.574000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (235.650000,-50.197000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-341.375000,-52.341000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (244.495000,-71.875000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-365.944000,-61.146000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (208.411000,-40.085000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-353.495000,-74.947000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (230.514000,-54.002000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-336.703000,-93.288000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-19.747000,375.008000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-338.522000,-103.215000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-38.669000,475.402000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-64.958000,-358.881000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-68.680000,472.599000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (5.647000,214.368000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (276.553000,-23.845000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.485000,-10.419000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-369.234000,-72.136000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-284.237000,20.251000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-416.077000,-200.211000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-2.556000,-231.606000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-57.351000,458.956000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-349.937000,-18.347000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-62.136000,426.924000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-351.289000,-44.574000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (235.650000,-50.197000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-341.375000,-52.341000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (244.495000,-71.875000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-365.944000,-61.146000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (208.411000,-40.085000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-353.495000,-74.947000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (230.514000,-54.002000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-336.703000,-93.288000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-19.747000,375.008000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-338.522000,-103.215000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-38.669000,475.402000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-64.958000,-358.881000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-68.680000,472.599000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (5.647000,214.368000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (276.553000,-23.845000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-321.485000,-10.419000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-369.234000,-72.136000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
