Basic Information for GPC2552_X_005_A_H5
Brief description of DB components associated to this Hybrid Assembly and associated tests
Shown below are results for the glue weight measurements
IService::UPLOADDB INFO Working on test code ASIC_GLUE_WEIGHT
GlueWeightSvc::uploadDB INFO Formatting database test for ASIC_GLUE_WEIGHT
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 0111 for component GPC2552_X_005_A_H5
IService::install INFO Installing output directory to /home/data/modules/GPC2552_X_005_A_H5/GlueWeightHybridASIC_PROD_v2-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...

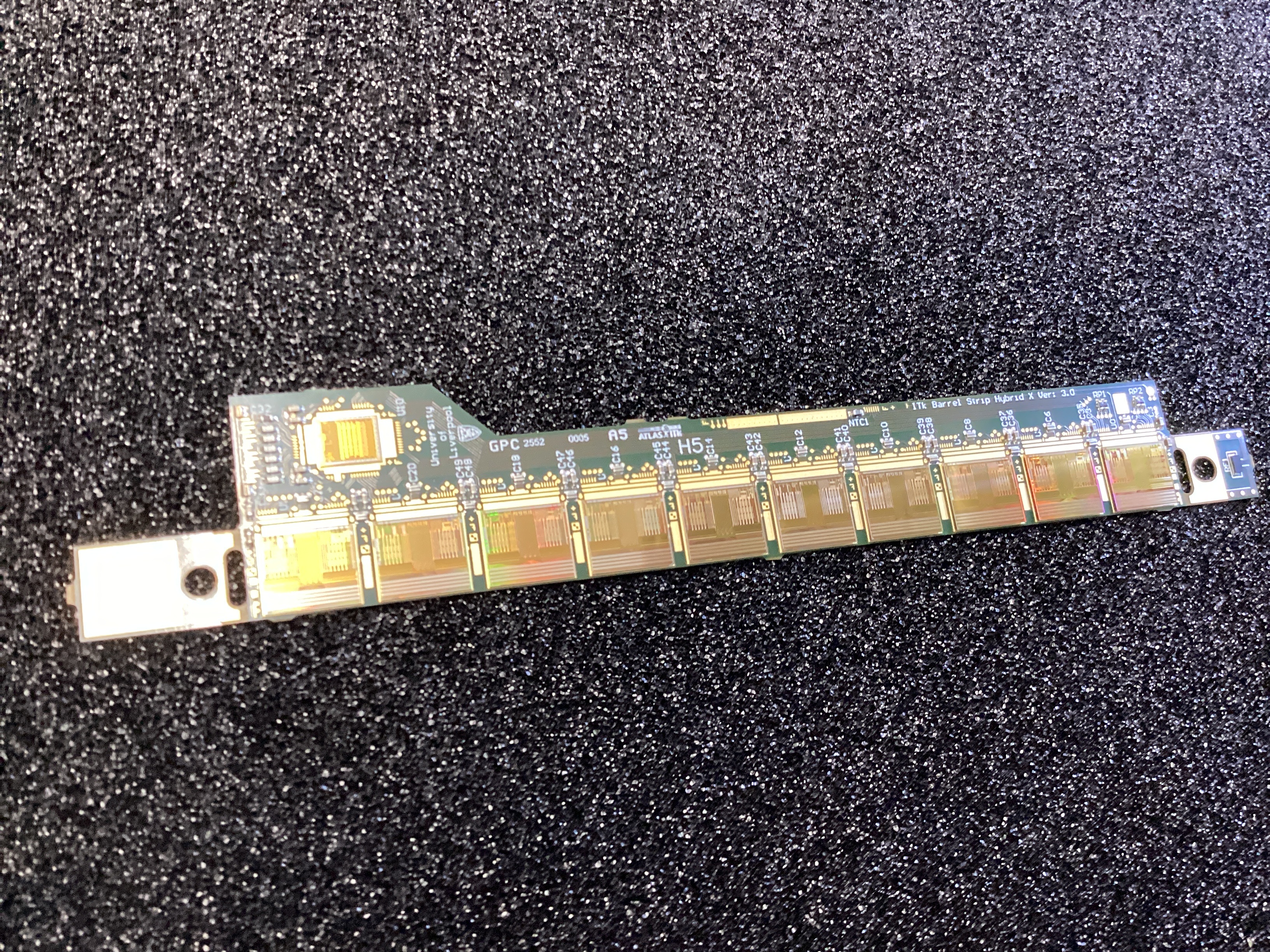

IService::install INFO Installed 20USBHX2007807_image.jpg...
IService::install INFO Installed DB_COMMENTS.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_GLUE_WEIGHT.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2552_X_005_A_H5.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name GlueWeightModule_LS_PPA ignored through users request!
TopControl::monitor INFO Service with algoirthm name GlueWeightModule_SS_PPA ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPullTest ignored through users request!
TopControl::monitor INFO Service with algoirthm name PullTestCicorelCard ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridFlexArray_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name Powerboards_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_Wafer_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HCC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorBondingQC_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_Before_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_After_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name PhotoUpload ignored through users request!
TopControl::monitor INFO Service with algoirthm name PictureModule ignored through users request!
TopControl::monitor INFO Service with algoirthm name GeneralPictures ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PreTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PostTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_Module_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_AMACIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SixWayJig_Y_slots ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology_v7 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_Y_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10-beta ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
Metadata
Value
Component type
Operator
LM, AS
Date
2026-06-29T21:53:49.753+00:00
Program
ASIC_X_PPB.src
Field
Weight/Volume
Assummed density of glue
1.077
Total volume of ASIC glue [uL]
40.676
Volume per glue dot [nL]
782.224
Weight of glue under ASICs [mg]
43.800
Weights of bare hybrid [g]
2.297
Weights of stuffed hybrid [g]
2.341
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_0] Height in z : 467.208250 +/- 4.667500 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_0] Height in z : 56.583625 +/- 12.199537 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 410.624625
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 110.624625 +/- 13.986216 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 411.624625 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_1] Height in z : 460.023250 +/- 1.500500 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_1] Height in z : 45.434667 +/- 12.913833 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 414.588583
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 114.588583 +/- 13.929056 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 415.588583 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_2] Height in z : 452.704000 +/- 1.087500 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_2] Height in z : 41.124556 +/- 9.209667 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 411.579444
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 111.579444 +/- 10.535683 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 412.579444 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_3] Height in z : 447.003250 +/- 1.255000 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_3] Height in z : 43.670778 +/- 9.396000 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 403.332472
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 103.332472 +/- 10.717268 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 404.332472 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_4] Height in z : 442.859750 +/- 1.120250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_4] Height in z : 41.558333 +/- 6.672500 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 401.301417
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 101.301417 +/- 8.412920 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 402.301417 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_5] Height in z : 440.974250 +/- 0.575000 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_5] Height in z : 37.934889 +/- 9.457000 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 403.039361
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 103.039361 +/- 10.712865 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 404.039361 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_6] Height in z : 438.068250 +/- 0.466250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_6] Height in z : 35.899111 +/- 13.451667 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 402.169139
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 102.169139 +/- 14.358437 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 403.169139 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_7] Height in z : 436.584250 +/- 1.413750 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_7] Height in z : 32.122333 +/- 14.027667 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 404.461917
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 104.461917 +/- 14.959082 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 405.461917 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_8] Height in z : 438.566250 +/- 0.526750 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_8] Height in z : 37.481333 +/- 13.552167 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 401.084917
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 101.084917 +/- 14.454712 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 402.084917 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_9] Height in z : 442.657750 +/- 0.526750 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_9] Height in z : 45.564125 +/- 9.926188 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 397.093625
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 97.093625 +/- 11.126845 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 398.093625 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [HCC_X_0] Height in z : 437.043750 +/- 0.838500 um
MetrologySvc::analyzeGlueHeights INFO ----> [HCC_X_0] Height in z : 43.784500 +/- 8.072861 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 393.259250
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 93.259250 +/- 9.532795 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 394.259250 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeHybridThickness INFO Total stack up 939.853500, chip thickness 300.000000 and glue 110.624625, giving hybrid 529.228875 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 933.341694, chip thickness 300.000000 and glue 114.588583, giving hybrid 518.753111 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 929.621331, chip thickness 300.000000 and glue 111.579444, giving hybrid 518.041887 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 927.209768, chip thickness 300.000000 and glue 103.332472, giving hybrid 523.877296 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 926.965434, chip thickness 300.000000 and glue 101.301417, giving hybrid 525.664017 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 928.680451, chip thickness 300.000000 and glue 103.039361, giving hybrid 525.641090 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 927.806251, chip thickness 300.000000 and glue 102.169139, giving hybrid 525.637113 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 926.746983, chip thickness 300.000000 and glue 104.461917, giving hybrid 522.285067 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 928.945746, chip thickness 300.000000 and glue 101.084917, giving hybrid 527.860830 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 934.524980, chip thickness 300.000000 and glue 97.093625, giving hybrid 537.431355 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 931.431500, chip thickness 300.000000 and glue 93.259250, giving hybrid 538.172250 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_interposer//GPC2552_X_005_A_H5/1//Data__GPC2552_X_005_A_H5.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_interposer//GPC2552_X_005_A_H5/1//Results__GPC2552_X_005_A_H5.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_interposer//GPC2552_X_005_A_H5/1//Data__GPC2552_X_005_A_H5.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_interposer//GPC2552_X_005_A_H5/1//Results__GPC2552_X_005_A_H5.txt
IService::log INFO Logging status 0111 for component GPC2552_X_005_A_H5
IService::install INFO Installing output directory to /home/data/modules/GPC2552_X_005_A_H5/MetrologyHybrid_PROD_X_v2_interposer-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed Summary.pdf...
IService::install INFO Installed TotalStackUp.pdf...
IService::install INFO Installed HybridThickness.pdf...
IService::install INFO Installed Positions.pdf...
IService::install INFO Installed Tilt.pdf...
IService::install INFO Installed Data__GPC2552_X_005_A_H5.txt...
IService::install INFO Installed Results__GPC2552_X_005_A_H5.txt...
IService::install INFO Installed Results.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO Installed GPC2552_X_005_A_H5.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0010333
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Wirebonding for GPC2552_X_005_A_H5
Wirebonding summaries will be given below
WireBondSvc::run INFO Loading group FAILED_ASIC_BACKEND
WireBondSvc::run INFO Loading group FAILED_HYBRID_TO_PANEL
WireBondSvc::run INFO Loading group REPAIRED_ASIC_BACKEND
WireBondSvc::run INFO Loading group REPAIRED_HYBRID_TO_PANEL
IService::UPLOADDB INFO Working on test code WIRE_BONDING
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 0111 for component GPC2552_X_005_A_H5
IService::install INFO Installing output directory to /home/data/modules/GPC2552_X_005_A_H5/HybridBonding_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_WIRE_BONDING.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2552_X_005_A_H5.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name ModuleBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPullTest ignored through users request!
TopControl::monitor INFO Service with algoirthm name PullTestCicorelCard ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridFlexArray_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name Powerboards_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_Wafer_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HCC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorBondingQC_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_Before_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_After_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name PhotoUpload ignored through users request!
TopControl::monitor INFO Service with algoirthm name PictureModule ignored through users request!
TopControl::monitor INFO Service with algoirthm name GeneralPictures ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PreTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PostTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_Module_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_AMACIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SixWayJig_Y_slots ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology_v7 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_Y_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10-beta ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
Metadata
Value
Date
2026-06-30T21:47:32.922+00:00
Operator
AS
Bonder
hk1
Version
v1
Bond number
Type
Comment
Electrical results
Electrical summaries will be given below
ElectricalSvc::getListOfFilesFromDir INFO Scanning for test files GPC2552_X_005_A_H5/20USBHX2007807
ElectricalSvc::getListOfJsonFilesFromDir INFO Scanning for test files GPC2552_X_005_A_H5/20USBHX2007807
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2007807_20260701_6_NO_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2007807_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2007807_20260701_6_3PG_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2007807_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2007807_20260701_6_powerCycleTest_BURNIN.json
ElectricalSvc::getListOfJsonFilesFromDir INFO Loading json fle SN20USBHX2007807_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::read INFO Found 0 results files...
ElectricalSvc::load_asic_db INFO Reading ASIC database file /home/data/upload//BurnInHybrids_PROD_v2//GPC2552_X_005_A_H5_GAIN_TEST.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
IService::UPLOADDB INFO Working on test code PEDESTAL_TRIM_BURNIN
IService::UPLOADDB INFO Working on test code STROBE_DELAY_BURNIN
IService::UPLOADDB INFO Working on test code RESPONSE_CURVE_BURNIN
IService::UPLOADDB INFO Working on test code NO_BURNIN
IService::log INFO Logging status 0111 for component GPC2552_X_005_A_H5
IService::install INFO Installing output directory to /home/data/modules/GPC2552_X_005_A_H5/BurnInHybrids_PROD_v2-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007807_20260701_6_PEDESTAL_TRIM_BURNIN.json...
IService::install INFO Installed DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007807_20260701_6_STROBE_DELAY_BURNIN.json...
IService::install INFO Installed DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007807_20260701_6_RESPONSE_CURVE_BURNIN.json...
IService::install INFO Installed DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007807_20260701_6_3PG_BURNIN.json...
IService::install INFO Installed DB_READY_NO_BURNIN_SN20USBHX2007807_20260701_6_NO_BURNIN.json...
IService::install INFO Installed GPC2552_X_005_A_H5.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007801_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007801_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007801_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007801_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007801_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007801_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007801_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007801_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007801_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007801_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007801_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007801_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007801_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007801_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007801_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007802_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007802_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007802_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007802_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007802_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007802_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007802_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007802_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007802_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007802_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007802_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007802_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007802_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007802_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007802_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007803_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007803_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007803_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007804_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007804_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007804_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007804_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007804_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007804_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007804_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007804_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007804_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007804_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007804_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007804_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007804_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007804_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007804_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007805_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007805_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007805_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007805_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007805_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007805_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007805_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007805_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007805_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007805_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007805_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007805_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007805_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007805_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007805_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007806_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007806_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007806_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007806_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007806_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007806_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007806_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007806_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007806_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007806_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007806_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007806_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007806_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007806_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007806_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007807_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007807_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007807_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007807_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007807_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007807_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007807_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007807_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007807_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007807_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007807_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007807_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007807_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007807_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007807_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007808_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007808_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007808_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007808_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007808_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007808_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007808_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007808_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007808_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007808_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007808_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007808_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007808_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007808_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007808_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007809_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007809_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007809_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007809_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007809_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007809_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007809_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007809_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007809_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007809_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007809_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007809_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007809_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007809_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007809_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007810_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007810_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007810_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007810_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007810_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007810_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007810_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007810_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007810_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007810_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007810_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007810_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007810_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007810_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007810_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007812_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007812_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007812_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007812_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007812_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007812_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007812_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007812_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007812_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007812_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007812_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007812_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007812_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007812_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007812_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007811_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007811_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007811_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007811_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007811_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007811_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007811_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007811_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007811_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007811_20260701_6_NO_BURNIN.json
ElectricalSvc::PassFail INFO Reading PassFail status directly from uploaded files
ElectricalSvc::PassFail INFO Loading json fle DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007811_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_STROBE_DELAY_BURNIN_SN20USBHX2007811_20260701_6_STROBE_DELAY_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007811_20260701_6_RESPONSE_CURVE_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_RESPONSE_CURVE_BURNIN_SN20USBHX2007811_20260701_6_3PG_BURNIN.json
ElectricalSvc::PassFail INFO Loading json fle DB_READY_NO_BURNIN_SN20USBHX2007811_20260701_6_NO_BURNIN.json
ElectricalSvc::load_asic_db WARNING Could not find database ASIC GAIN_TEST results for GPC2552_X_005_A_H5
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0010333
MetaData::getLocalName WARNING Could not find a local name for identifier 20USGAA1365229
MetaData::getLocalName WARNING Could not find a local name for identifier 20USGAA1365228
MetaData::getLocalName WARNING Could not find a local name for identifier 20USGAA1365227
MetaData::getLocalName WARNING Could not find a local name for identifier 20USGAA1365226
MetaData::getLocalName WARNING Could not find a local name for identifier 20USGAA1365225
MetaData::getLocalName WARNING Could not find a local name for identifier 20USGAA1365224
MetaData::getLocalName WARNING Could not find a local name for identifier 20USGAA1365223
MetaData::getLocalName WARNING Could not find a local name for identifier 20USGAA1365222
MetaData::getLocalName WARNING Could not find a local name for identifier 20USGAA1365220
MetaData::getLocalName WARNING Could not find a local name for identifier 20USGAA1365219
ElectricalSvc::PassFail WARNING Failing test detected in DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007803_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail WARNING Failing test detected in DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007803_20260701_6_PEDESTAL_TRIM_BURNIN.json
ElectricalSvc::PassFail WARNING Failing test detected in DB_READY_PEDESTAL_TRIM_BURNIN_SN20USBHX2007803_20260701_6_PEDESTAL_TRIM_BURNIN.json
Figures of gain and noise, and correlations with wafer/hybrid level test results, if they exist.
