Basic Information for GPC2552_X_008_C_H6
Brief description of DB components associated to this Hybrid Assembly and associated tests
Shown below are results for the glue weight measurements
IService::UPLOADDB INFO Working on test code ASIC_GLUE_WEIGHT
GlueWeightSvc::uploadDB INFO Formatting database test for ASIC_GLUE_WEIGHT
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 0111 for component GPC2552_X_008_C_H6
IService::install INFO Installing output directory to /home/data/modules/GPC2552_X_008_C_H6/GlueWeightHybridASIC_PROD_v2-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...

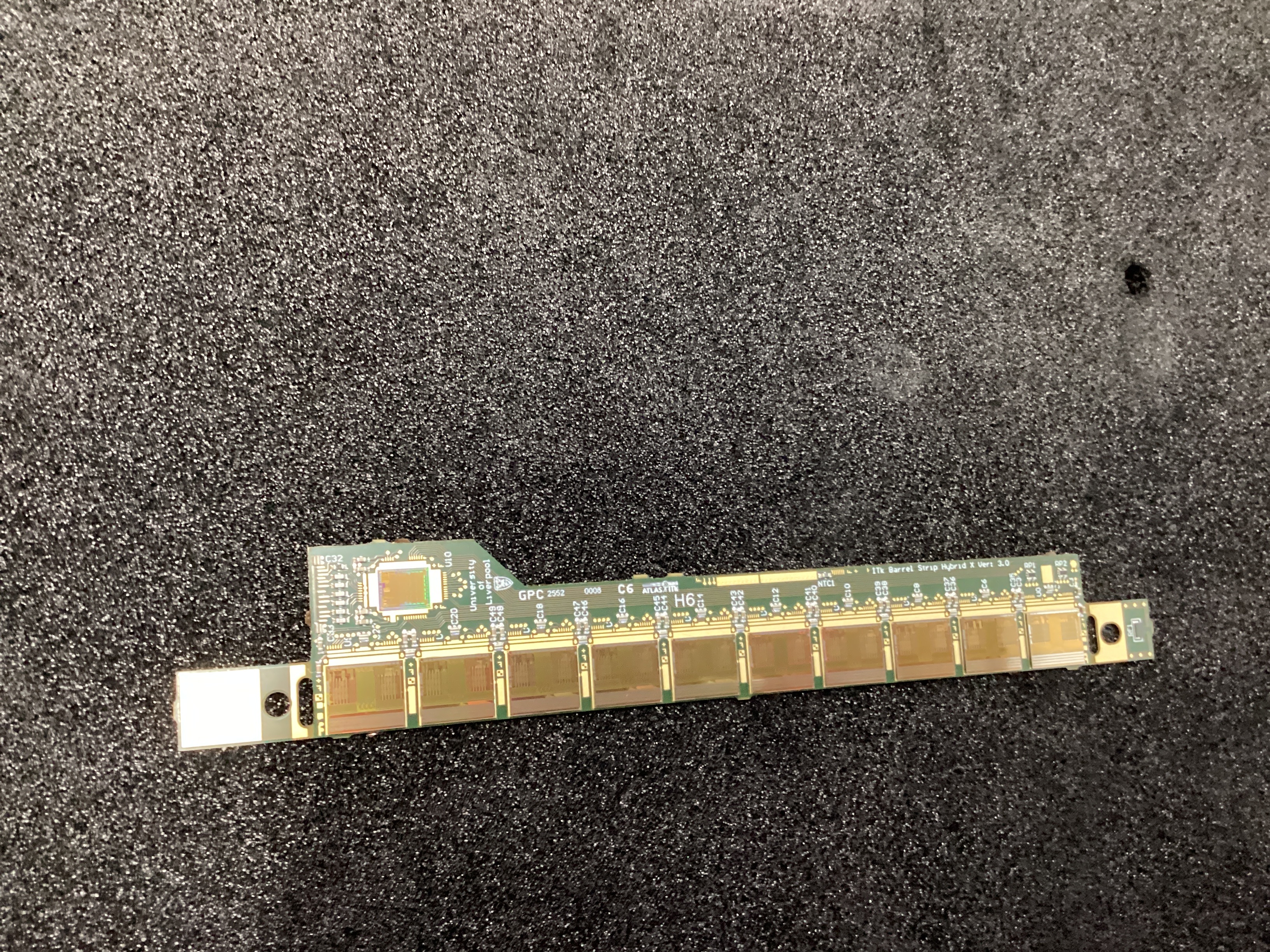

IService::install INFO Installed 20USBHX2006301_image.jpg...
IService::install INFO Installed DB_COMMENTS.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_GLUE_WEIGHT.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2552_X_008_C_H6.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name GlueWeightModule_LS_PPA ignored through users request!
TopControl::monitor INFO Service with algoirthm name GlueWeightModule_SS_PPA ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPullTest ignored through users request!
TopControl::monitor INFO Service with algoirthm name PullTestCicorelCard ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridFlexArray_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name Powerboards_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_Wafer_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HCC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorBondingQC_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_Before_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_After_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name PhotoUpload ignored through users request!
TopControl::monitor INFO Service with algoirthm name PictureModule ignored through users request!
TopControl::monitor INFO Service with algoirthm name GeneralPictures ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PreTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PostTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_Module_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_AMACIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SixWayJig_Y_slots ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology_v7 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_Y_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10-beta ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridToSensorMetrology_v2a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPA_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_wuerth_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
Metadata
Value
Component type
Operator
LM,AS
Date
2026-05-22T21:44:15.934+00:00
Program
ASIC_X_PPB.src
Field
Weight/Volume
Assummed density of glue
1.077
Total volume of ASIC glue [uL]
42.812
Volume per glue dot [nL]
823.300
Weight of glue under ASICs [mg]
46.100
Weights of bare hybrid [g]
2.233
Weights of stuffed hybrid [g]
2.279
Metrology results
Shown below are the results of the module metrology scans
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_0] Height in z : 460.048250 +/- 4.356250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_0] Height in z : 33.389375 +/- 7.015030 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 426.658875
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 126.658875 +/- 9.653370 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 427.658875 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_1] Height in z : 453.652500 +/- 1.396250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_1] Height in z : 35.607333 +/- 8.370500 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 418.045167
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 118.045167 +/- 9.849608 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 419.045167 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_2] Height in z : 443.176750 +/- 5.778250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_2] Height in z : 34.100444 +/- 7.304667 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 409.076306
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 109.076306 +/- 10.571014 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 410.076306 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_3] Height in z : 439.359000 +/- 1.059000 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_3] Height in z : 28.545000 +/- 5.522667 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 410.814000
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 110.814000 +/- 7.524714 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 411.814000 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_4] Height in z : 436.520750 +/- 1.760000 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_4] Height in z : 34.856111 +/- 6.474500 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 401.664639
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 101.664639 +/- 8.367601 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 402.664639 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_5] Height in z : 433.254250 +/- 1.455500 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_5] Height in z : 33.295000 +/- 4.732000 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 399.959250
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 99.959250 +/- 7.036356 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 400.959250 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_6] Height in z : 430.959250 +/- 1.566250 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_6] Height in z : 32.636111 +/- 11.482667 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 398.323139
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 98.323139 +/- 12.621599 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 399.323139 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_7] Height in z : 430.493750 +/- 0.740500 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_7] Height in z : 33.064778 +/- 12.543500 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 397.428972
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 97.428972 +/- 13.523599 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 398.428972 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_8] Height in z : 431.781000 +/- 1.216500 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_8] Height in z : 35.726889 +/- 11.428667 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 396.054111
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 96.054111 +/- 12.533726 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 397.054111 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_9] Height in z : 435.506000 +/- 1.504500 um
MetrologySvc::analyzeGlueHeights INFO ----> [ABC_X_9] Height in z : 39.753875 +/- 8.220293 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 395.752125
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 95.752125 +/- 9.738416 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 396.752125 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeGlueHeights INFO Printing associated surfaces...
MetrologySvc::analyzeGlueHeights INFO ----> [HCC_X_0] Height in z : 436.280500 +/- 0.727750 um
MetrologySvc::analyzeGlueHeights INFO ----> [HCC_X_0] Height in z : 24.061375 +/- 7.949118 um
MetrologySvc::analyzeGlueHeights INFO ----> Difference in heights : 412.219125
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue assuming 300.000000 +/- 5.000000 extra material : 112.219125 +/- 9.419028 um
MetrologySvc::analyzeGlueHeights INFO ----> Thickeness of glue using derived value -1.000000 from hybrid measurements : 413.219125 um
MetrologySvc::analyzeGlueHeights INFO ---------------------------------------------------------------------------------
MetrologySvc::analyzeHybridThickness INFO Total stack up 943.420250, chip thickness 300.000000 and glue 126.658875, giving hybrid 516.761375 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 937.563226, chip thickness 300.000000 and glue 118.045167, giving hybrid 519.518059 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 930.533228, chip thickness 300.000000 and glue 109.076306, giving hybrid 521.456923 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 929.829912, chip thickness 300.000000 and glue 110.814000, giving hybrid 519.015912 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 930.725447, chip thickness 300.000000 and glue 101.664639, giving hybrid 529.060808 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 930.854304, chip thickness 300.000000 and glue 99.959250, giving hybrid 530.895054 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 930.427912, chip thickness 300.000000 and glue 98.323139, giving hybrid 532.104773 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 930.233985, chip thickness 300.000000 and glue 97.428972, giving hybrid 532.805013 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 931.568300, chip thickness 300.000000 and glue 96.054111, giving hybrid 535.514189 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 936.618179, chip thickness 300.000000 and glue 95.752125, giving hybrid 540.866054 thickness
MetrologySvc::analyzeHybridThickness INFO Total stack up 939.223000, chip thickness 300.000000 and glue 112.219125, giving hybrid 527.003875 thickness
IService::UPLOADDB INFO Working on test code ASIC_METROLOGY
MetrologySvc::uploadDB INFO Doing DB upload...
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_interposer//GPC2552_X_008_C_H6/2//Data__GPC2552_X_008_C_H6.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_interposer//GPC2552_X_008_C_H6/2//Results__GPC2552_X_008_C_H6.txt
MetrologySvc::writeOutput INFO Writing common output file /home/data/output//MetrologyHybrid_PROD_X_v2_interposer//GPC2552_X_008_C_H6/2//Data__GPC2552_X_008_C_H6.txt
MetrologySvc::writeOutput INFO Writing results output file /home/data/output//MetrologyHybrid_PROD_X_v2_interposer//GPC2552_X_008_C_H6/2//Results__GPC2552_X_008_C_H6.txt
IService::log INFO Logging status 0111 for component GPC2552_X_008_C_H6
IService::install INFO Installing output directory to /home/data/modules/GPC2552_X_008_C_H6/MetrologyHybrid_PROD_X_v2_interposer-2/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed Summary.pdf...
IService::install INFO Installed TotalStackUp.pdf...
IService::install INFO Installed HybridThickness.pdf...
IService::install INFO Installed Positions.pdf...
IService::install INFO Installed Tilt.pdf...
IService::install INFO Installed Data__GPC2552_X_008_C_H6.txt...
IService::install INFO Installed Results__GPC2552_X_008_C_H6.txt...
IService::install INFO Installed Results.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_ASIC_METROLOGY.json...
IService::install INFO Installed GPC2552_X_008_C_H6.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridToSensorMetrology_v2a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPA_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_wuerth_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
MetaData::getLocalName WARNING Could not find a local name for identifier 20USBHN0010411
MetrologySvc::PassFail WARNING Chip position (x,y) = (-67867.458000,-4016.848000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-67527.992000,-3999.836000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2212.975000,-4005.514000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9656.822000,2393.239000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9667.262000,2405.291000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9664.603000,2404.293000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.569000,2410.596000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9679.326000,2405.212000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9659.237000,2414.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9660.310000,2403.171000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9676.975000,2395.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.240000,2389.899000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.196000,2404.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.672000,2387.815000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9675.639000,2413.937000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.470000,2392.567000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9689.631000,2408.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9690.939000,2404.907000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.292000,2395.874000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.157000,2384.411000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10733.122000,12392.100000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10531.842000,2001.176000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4945.077000,18377.290000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4934.877000,18380.307000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-67867.458000,-4016.848000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-67527.992000,-3999.836000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2212.975000,-4005.514000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9656.822000,2393.239000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9667.262000,2405.291000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9664.603000,2404.293000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.569000,2410.596000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9679.326000,2405.212000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9659.237000,2414.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9660.310000,2403.171000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9676.975000,2395.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.240000,2389.899000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.196000,2404.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.672000,2387.815000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9675.639000,2413.937000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.470000,2392.567000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9689.631000,2408.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9690.939000,2404.907000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.292000,2395.874000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.157000,2384.411000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10733.122000,12392.100000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10531.842000,2001.176000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4945.077000,18377.290000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4934.877000,18380.307000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-67867.458000,-4016.848000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-67527.992000,-3999.836000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2212.975000,-4005.514000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9656.822000,2393.239000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9667.262000,2405.291000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9664.603000,2404.293000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.569000,2410.596000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9679.326000,2405.212000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9659.237000,2414.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9660.310000,2403.171000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9676.975000,2395.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.240000,2389.899000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.196000,2404.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.672000,2387.815000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9675.639000,2413.937000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.470000,2392.567000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9689.631000,2408.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9690.939000,2404.907000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.292000,2395.874000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.157000,2384.411000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10733.122000,12392.100000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10531.842000,2001.176000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4945.077000,18377.290000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4934.877000,18380.307000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (876.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (8478.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (12.508000,2357.991000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7396.290000,-4043.556000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (14.705000,2366.121000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7409.976000,-4035.958000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7.876000,2366.278000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7402.639000,-4035.794000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10.107000,2385.408000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7407.361000,-4016.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.341000,2383.575000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7395.595000,-4018.485000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (17.745000,2376.669000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.003000,-4024.863000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (21.171000,2376.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7412.931000,-4025.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (6.643000,2391.495000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7405.406000,-4010.552000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2.206000,2391.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.500000,-4018.502000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (11958.471000,25608.064000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-5609.629000,21537.377000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-20843.961000,16315.315000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-68271.804000,20316.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (876.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (8478.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (12.508000,2357.991000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7396.290000,-4043.556000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (14.705000,2366.121000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7409.976000,-4035.958000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7.876000,2366.278000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7402.639000,-4035.794000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10.107000,2385.408000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7407.361000,-4016.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.341000,2383.575000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7395.595000,-4018.485000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (17.745000,2376.669000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.003000,-4024.863000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (21.171000,2376.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7412.931000,-4025.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (6.643000,2391.495000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7405.406000,-4010.552000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2.206000,2391.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.500000,-4018.502000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (11958.471000,25608.064000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-5609.629000,21537.377000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-20843.961000,16315.315000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-68271.804000,20316.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (876.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (8478.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (12.508000,2357.991000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7396.290000,-4043.556000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (14.705000,2366.121000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7409.976000,-4035.958000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7.876000,2366.278000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7402.639000,-4035.794000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10.107000,2385.408000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7407.361000,-4016.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.341000,2383.575000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7395.595000,-4018.485000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (17.745000,2376.669000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.003000,-4024.863000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (21.171000,2376.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7412.931000,-4025.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (6.643000,2391.495000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7405.406000,-4010.552000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2.206000,2391.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.500000,-4018.502000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (11958.471000,25608.064000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-5609.629000,21537.377000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-20843.961000,16315.315000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-68271.804000,20316.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (876.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (8478.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (12.508000,2357.991000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7396.290000,-4043.556000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (14.705000,2366.121000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7409.976000,-4035.958000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7.876000,2366.278000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7402.639000,-4035.794000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10.107000,2385.408000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7407.361000,-4016.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.341000,2383.575000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7395.595000,-4018.485000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (17.745000,2376.669000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.003000,-4024.863000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (21.171000,2376.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7412.931000,-4025.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (6.643000,2391.495000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7405.406000,-4010.552000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2.206000,2391.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.500000,-4018.502000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-76417.813000,6005.350000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-76229.769000,8420.283000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-79099.352000,8414.400000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-78967.865000,6018.211000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (876.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (8478.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (12.508000,2357.991000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7396.290000,-4043.556000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (14.705000,2366.121000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7409.976000,-4035.958000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7.876000,2366.278000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7402.639000,-4035.794000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10.107000,2385.408000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7407.361000,-4016.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.341000,2383.575000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7395.595000,-4018.485000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (17.745000,2376.669000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.003000,-4024.863000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (21.171000,2376.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7412.931000,-4025.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (6.643000,2391.495000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7405.406000,-4010.552000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2.206000,2391.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.500000,-4018.502000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-76417.813000,6005.350000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-76229.769000,8420.283000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-79099.352000,8414.400000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-78967.865000,6018.211000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (876.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (8478.000000,1193.000000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (12.508000,2357.991000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7396.290000,-4043.556000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (14.705000,2366.121000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7409.976000,-4035.958000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7.876000,2366.278000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7402.639000,-4035.794000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10.107000,2385.408000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7407.361000,-4016.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.341000,2383.575000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7395.595000,-4018.485000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (17.745000,2376.669000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.003000,-4024.863000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (21.171000,2376.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7412.931000,-4025.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (6.643000,2391.495000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7405.406000,-4010.552000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2.206000,2391.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.500000,-4018.502000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-76417.813000,6005.350000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-76229.769000,8420.283000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-79099.352000,8414.400000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-78967.865000,6018.211000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-12092.354000,8968.867000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4423.549000,11970.717000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (12.508000,2357.991000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7396.290000,-4043.556000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (14.705000,2366.121000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7409.976000,-4035.958000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7.876000,2366.278000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7402.639000,-4035.794000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10.107000,2385.408000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7407.361000,-4016.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.341000,2383.575000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7395.595000,-4018.485000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (17.745000,2376.669000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.003000,-4024.863000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (21.171000,2376.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7412.931000,-4025.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (6.643000,2391.495000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7405.406000,-4010.552000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2.206000,2391.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.500000,-4018.502000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-47424.000000,5994.671000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-47214.497000,8399.341000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-50077.485000,8407.487000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-49946.479000,6011.011000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-12092.354000,8968.867000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4423.549000,11970.717000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (12.508000,2357.991000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7396.290000,-4043.556000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (14.705000,2366.121000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7409.976000,-4035.958000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7.876000,2366.278000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7402.639000,-4035.794000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10.107000,2385.408000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7407.361000,-4016.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.341000,2383.575000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7395.595000,-4018.485000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (17.745000,2376.669000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.003000,-4024.863000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (21.171000,2376.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7412.931000,-4025.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (6.643000,2391.495000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7405.406000,-4010.552000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2.206000,2391.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.500000,-4018.502000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-47424.000000,5994.671000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-47214.497000,8399.341000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-50077.485000,8407.487000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-49946.479000,6011.011000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-12092.354000,8968.867000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4423.549000,11970.717000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (12.508000,2357.991000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7396.290000,-4043.556000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (14.705000,2366.121000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7409.976000,-4035.958000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7.876000,2366.278000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7402.639000,-4035.794000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10.107000,2385.408000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7407.361000,-4016.667000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (1.341000,2383.575000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7395.595000,-4018.485000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (17.745000,2376.669000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.003000,-4024.863000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (21.171000,2376.804000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7412.931000,-4025.230000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (6.643000,2391.495000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7405.406000,-4010.552000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2.206000,2391.840000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7406.500000,-4018.502000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-47424.000000,5994.671000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-47214.497000,8399.341000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-50077.485000,8407.487000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-49946.479000,6011.011000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-10757.149000,8380.175000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-3163.567000,12373.676000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2212.975000,-4005.514000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9656.822000,2393.239000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9667.262000,2405.291000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9664.603000,2404.293000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.569000,2410.596000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9679.326000,2405.212000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9659.237000,2414.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9660.310000,2403.171000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9676.975000,2395.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.240000,2389.899000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.196000,2404.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.672000,2387.815000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9675.639000,2413.937000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.470000,2392.567000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9689.631000,2408.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9690.939000,2404.907000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.292000,2395.874000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.157000,2384.411000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18245.115000,12416.589000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18440.464000,2016.948000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-21096.034000,8415.011000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-20957.353000,6019.295000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 38 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-10757.149000,8380.175000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-3163.567000,12373.676000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2212.975000,-4005.514000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9656.822000,2393.239000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9667.262000,2405.291000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9664.603000,2404.293000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.569000,2410.596000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9679.326000,2405.212000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9659.237000,2414.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9660.310000,2403.171000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9676.975000,2395.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.240000,2389.899000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.196000,2404.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.672000,2387.815000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9675.639000,2413.937000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.470000,2392.567000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9689.631000,2408.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9690.939000,2404.907000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.292000,2395.874000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.157000,2384.411000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18245.115000,12416.589000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18440.464000,2016.948000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-21096.034000,8415.011000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-20957.353000,6019.295000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 38 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-10757.149000,8380.175000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-3163.567000,12373.676000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2212.975000,-4005.514000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9656.822000,2393.239000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9667.262000,2405.291000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9664.603000,2404.293000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.569000,2410.596000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9679.326000,2405.212000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9659.237000,2414.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9660.310000,2403.171000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9676.975000,2395.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.240000,2389.899000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.196000,2404.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.672000,2387.815000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9675.639000,2413.937000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.470000,2392.567000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9689.631000,2408.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9690.939000,2404.907000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.292000,2395.874000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.157000,2384.411000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18245.115000,12416.589000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-18440.464000,2016.948000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-21096.034000,8415.011000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-20957.353000,6019.295000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 38 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-10757.149000,8380.175000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7358.115000,-5600.705000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2212.975000,-4005.514000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9656.822000,2393.239000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9667.262000,2405.291000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9664.603000,2404.293000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.569000,2410.596000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9679.326000,2405.212000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9659.237000,2414.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9660.310000,2403.171000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9676.975000,2395.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.240000,2389.899000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.196000,2404.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.672000,2387.815000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9675.639000,2413.937000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.470000,2392.567000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9689.631000,2408.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9690.939000,2404.907000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.292000,2395.874000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.157000,2384.411000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10733.122000,12392.100000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10531.842000,2001.176000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4945.077000,18377.290000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4934.877000,18380.307000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-10757.149000,8380.175000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7358.115000,-5600.705000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2212.975000,-4005.514000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9656.822000,2393.239000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9667.262000,2405.291000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9664.603000,2404.293000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.569000,2410.596000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9679.326000,2405.212000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9659.237000,2414.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9660.310000,2403.171000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9676.975000,2395.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.240000,2389.899000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.196000,2404.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.672000,2387.815000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9675.639000,2413.937000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.470000,2392.567000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9689.631000,2408.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9690.939000,2404.907000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.292000,2395.874000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.157000,2384.411000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10733.122000,12392.100000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10531.842000,2001.176000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4945.077000,18377.290000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4934.877000,18380.307000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
MetrologySvc::PassFail WARNING Chip position (x,y) = (-10757.149000,8380.175000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (7358.115000,-5600.705000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (2212.975000,-4005.514000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9656.822000,2393.239000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9667.262000,2405.291000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9664.603000,2404.293000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.569000,2410.596000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9679.326000,2405.212000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9659.237000,2414.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9660.310000,2403.171000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9676.975000,2395.763000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9677.240000,2389.899000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.196000,2404.655000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.672000,2387.815000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9675.639000,2413.937000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.470000,2392.567000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9689.631000,2408.198000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9690.939000,2404.907000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9672.292000,2395.874000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (9673.157000,2384.411000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10733.122000,12392.100000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (10531.842000,2001.176000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4945.077000,18377.290000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Chip position (x,y) = (-4934.877000,18380.307000) is outside tolerance of [100,300] um
MetrologySvc::PassFail WARNING Identified a total of 46 objects outside tolerence!!
The thickness of the glue \(t_{glue}\) is calculated as:
$$t_{glue} = \frac{1}{N_{c}}\sum_{c=1}^{N_{c}} z_{c} - \frac{1}{N_{b}}\sum_{b=1}^{N_{b}} z_{b} - t_{chip} $$
where \(t_{chip}\) is the thickness of the chip
\(z_{i}\) is the z-height measurement,
\(N_{i}\) is the number of measurements on a given surface,
and \(c\) and \(b\) run over measurements taken on the chip and base, respectively.
The assumed thickness of the chip is \(t_{chip} = 300\mu m\).
Uncertainties on the glue height measurement are estimated from the spread in z-height measurements on a given surface.
On a given surface, the height uncertainty \(\sigma_{i}\) is calculated as:
$$\sigma_{i} = \frac{\Delta z}{2\sqrt{N_{i}}}$$
where \(\Delta z = z_{max} - z_{min}\) and \(z_{max}\) and \(z_{min}\) are the maximum and minimum z-height measurements, respectively.
In addition, a conservative \(\sigma_{chip} = 10\mu m\) uncertainty on the chip thickeness is assumed.
The total uncertainty is calculated as:
$$\sigma_{glue} = \sqrt{ \sigma_{c}^2 + \sigma_{b}^2 + \sigma_{chip} }$$
The glue thickness measurements for each ASIC are shown in the figure and table below.
The thickness total stack up is measured from the top of the each chip to the jig,
and accounts for the combined thickness of hybrid flex, glue, and ABC/HCC chips in the case of hybrid.
The positions of the ASICs are measured on the 95x95 \(\mu m^2\) square pads on the opposite side of the sensor wire bonds.
These measured positions are compared against the technical drawns to calculated the relative ASIC position.
In some cases, the SmartScope incorrectly measures a different object than these square pads,
and using properties (such as the perimeter), the position is corrected.
The positions are shown in the figure below. If any corrections are applied, they are shown as transparent points.
The hybrid thickness is plotted below. It is calculated from the total stack up height minus the assembed chip thickness and measured glue thickness.
The tilt of a chip can be calculated in either the direction along the surface of a chip. We define
the x-direction to be any points whose difference is much larger along x, and similarly for y. The tilt in both cases is defined to be:
$$tilt = \frac{|\Delta z|}{\sqrt{\Delta x^{2} + \Delta y^{2}}} $$
Wirebonding for GPC2552_X_008_C_H6
Wirebonding summaries will be given below
WireBondSvc::run INFO Loading group FAILED_ASIC_BACKEND
WireBondSvc::run INFO Loading group FAILED_HYBRID_TO_PANEL
WireBondSvc::run INFO Loading group REPAIRED_ASIC_BACKEND
WireBondSvc::run INFO Loading group REPAIRED_HYBRID_TO_PANEL
IService::UPLOADDB INFO Working on test code WIRE_BONDING
IService::UPLOADDB INFO Working on test code VISUAL_INSPECTION
IService::log INFO Logging status 0111 for component GPC2552_X_008_C_H6
IService::install INFO Installing output directory to /home/data/modules/GPC2552_X_008_C_H6/HybridBonding_v1-1/
IService::install INFO Installed warningLog.txt...
IService::install INFO Installed errorLog.txt...
IService::install INFO Installed infoLog.txt...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_WIRE_BONDING.json...
IService::install INFO Installed DB_READY_HYBRID_ASSEMBLY_VISUAL_INSPECTION.json...
IService::install INFO Installed GPC2552_X_008_C_H6.root...
IService::install INFO Installed status.json...
TopControl::monitor INFO Service with algoirthm name ModuleBonding_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPullTest ignored through users request!
TopControl::monitor INFO Service with algoirthm name PullTestCicorelCard ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridFlexArray_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name Powerboards_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ABC_Wafer_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HCC_PullTest_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorBondingQC_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_Before_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HVTabSheet_SheerTest_After_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name PhotoUpload ignored through users request!
TopControl::monitor INFO Service with algoirthm name PictureModule ignored through users request!
TopControl::monitor INFO Service with algoirthm name GeneralPictures ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PreTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_PostTabIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_Module_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SensorIV_AMACIV_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name SixWayJig_Y_slots ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridPanelMetrology_v7 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridMetrology_Y_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_v10-beta ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_Y_v0_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyHybrid_PROD_X_v2_thick_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name HybridToSensorMetrology_v2a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_v8a ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPA_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_SS_wuerth_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PPB_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_LS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin ignored through users request!
TopControl::monitor INFO Service with algoirthm name MetrologyModules_PROD_SS_v1_thin_interposer ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleLS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ModuleSS_Bow_PPA_v0 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PPB_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name BurnInHybrids_PROD_v2 ignored through users request!
TopControl::monitor INFO Service with algoirthm name ElectricalModules_PPA_v1 ignored through users request!
TopControl::monitor INFO Service with algoirthm name TCModules_PROD_v0 ignored through users request!
